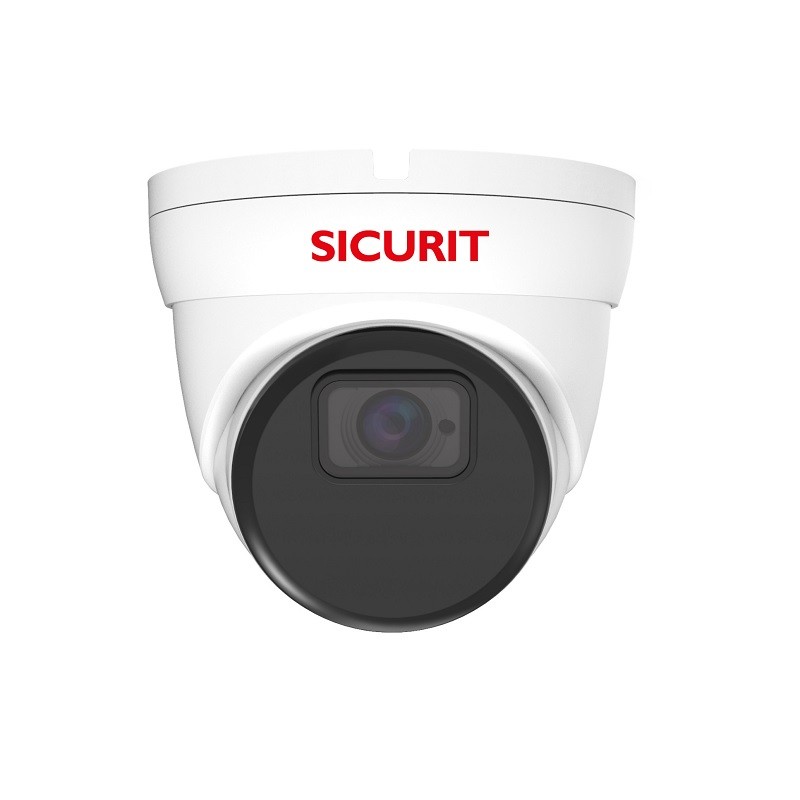

AI PROGRESS TURRET IP Camera 5MP 2.8MM - VIP5TU36LA
THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
AI PROGRESS TURRET IP Camera, 5MP, 2.8mm fixed lens, H.265/H.264, Day&Night IR Led 30 m, SD Card, Microphone, Intelligent Video Analysis (Face Detection (FD), Person and Vehicle Detection (PD and VD), Perimeter Intrusion Detection (PID), Line Crossing (LCD), Cross Counting (CC), Abandoned Object Detection (SOD), Heat Map (HM), Crowds of People (CD), Queue Length Detection (QD), License Plate Detection (LPD), Unusual Sound Detection (RSD))
TECHNICAL CHARACTERISTICS
Video
Sensor IMX307 1/2.7" Progressive CMOS
Scanning System Progressive Scan
Sensitivity Color 0.004lux @ F1.6 (AGC ON); B/W 0 lux @ IR ON
Lens Type 2.8mm fixed
Resolution 5MP 2880（H）x 1620（V）
Aperture Ratio F N. 1.6
Angular Field of View Horizontal: 91°, Vertical: 46°, Diagonal: 110°
Minimum Object Distance 2m（W/T）
Operational
IR Distance Up to 30m
Day & Night IR Filter with Auto Switching
(Day / Night / Auto / Image / Program）
Backlight Compensation Off/On (5 Zones)
Wide Dynamic Range WDR
Digital Noise Reduction 3D DNR
Motion Detection Off/On (8 Levels)
Privacy Masking Off/On (4 Zones, Rectangle)
Auto Control
White Balance Auto/Manual
Shutter Speed 1/5 ~ 1/20000s
On-Board Storage MicroSD Slot, up to 256GB
Alarm -
Audio Built-in Microphone
Hardware Reset Yes
AI Smart Functions
Smart Feature
Face Detection (FD), People & Vehicle Detection (PD & VD),
Perimeter Intrusion Detection (PID), Line Crossing (LCD),
Cross Counting (CC), Abandoned Object Detection (SOD),
Heatmap (HM), People Gathering (CD), Queue Length Detection
(QD), License Plate Detection (LPD), Unusual Sound Detection (RSD)
Network
Ethernet RJ45 (10/100BASE-T)
Video Compression H.265/H.265+/H.264/H.264+/MJPEG
Resolution Main Stream@30fps: 5MP(2880x1620),4MP(2560x1440), 3MP(2304x1296),
1080P(1920x1080), 720P(1280x720)
Sub Stream@30fps: 720P(1280x720), VGA(640x480), QVGA(320x240)
Mobile Stream@30fps: VGA(640x480), QVGA（320x24)
Video Quality Adjustment 256Kbps ~ 8Mbps
Bitrate Control Method CBR/VBR
Streaming Function Triple Stream(Main/Sub/Mobile)
Protocol TCP/IP, HTTP ,DHCP, DNS, DDNS,RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Web browser IE10/11, Safari V12.1+, Firefox V.52+, Google chrome V.57+,
Edge V.79+
Security IP address filter, strong password; username and password
Streaming method Unicast/Multicast
Programming interface ONVIF (Profile S/G/T)
Environment
Operating temperature/humidity -35°C ~ +60°C / ≤ 95%
Protection IP67
Electrical
Input voltage/current D12V / POE (IEEE802.3af)
Power consumption 2W-3W (IR off); 4W-5.5W (IR on)
Mechanical
Color/Material White / metal
Dimensions and weight 100 * 100 * 90 mm, 415g
