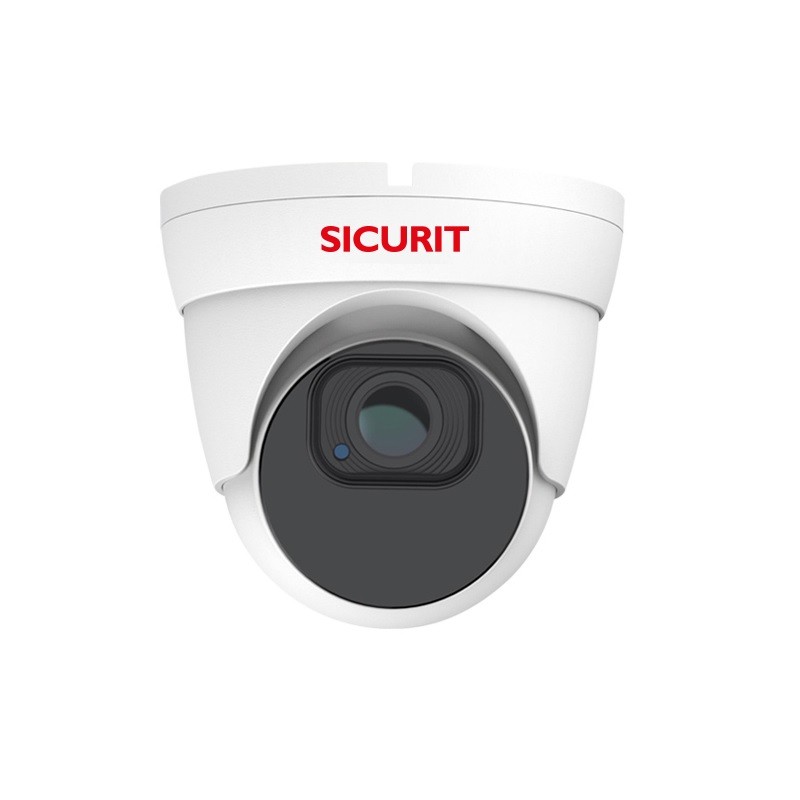

AI PROGRESS TURRET IP Camera 5MP Motorized 2.8/12MM - VIP5TU2812ZMFA
THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
AI PROGRESS TURRET IP Camera, 5MP, 2.8-12mm motorized lens, H.265/H.264, Day&Night IR Led 45 m, SD Card, Audio 1 input (RCA) / 1 output (RCA), Intelligent Video Analysis (Face Recognition, Detection: people and vehicles, Perimeter intrusion, Line crossing, Cross counting, Abandoned object, Heat map, Crowd density, Queue length, License plate, Unusual sounds)
TECHNICAL CHARACTERISTICS
Video
Sensor IMX307 1/2.7" Progressive CMOS
Scanning system Progressive scan
Sensitivity Color 0.003lux @ F1.6 (AGC ON); B/W 0 lux @ IR ON
Lens Type 2.8-12mm
Lens Type Motorized (Ø14)
Resolution 5MP 2880（H）x 1620（V）
Aperture Ratio F No. 1.8(W) ~ 3.3(T)
Angular Field of View Horizontal: 31 ~102°, Vertical: 23 ~ 73°, Diagonal: 38 ~ 138°
Minimum Object Distance 0.3m ~ INF
Operational
IR Distance Up to 45m
Day & Night IR Filter with Auto Switch
(Day / Night / Auto / Image / Program）
Backlight Compensation Off/On (5 Zones)
Wide Dynamic Range WDR
Digital Noise Reduction 3D DNR
Motion Detection Off/On (8 Levels)
Privacy Masking Off/On (4 Zones, Rectangle)
Control Auto
White Balance Auto/Manual
Shutter Speed 1/5 ~ 1/20000s
On-Board Storage MicroSD Slot, up to 256GB
Alarm 1 input / 1 output
Audio 1 input (RCA), 1 output (RCA)
Hardware Reset Yes
AI Intelligent Functions
Smart Feature
Face Detection, Detection: People & Vehicles, Perimeter Intrusion,
Line Crossing, Cross Counting, Stationary Object, Heat Map,
Crowd Density, Queue Length, License Plate, Unusual Sounds
Network
Ethernet RJ45 (10/100BASE-T)
Video Compression H.265/H.264
Main Stream Resolution@30fps: 5MP(2880x1620), 4MP(2560x1440), 3MP(2304x1296), 1080P(1920x1080), 720P(1280x720) Sub Stream@30fps: 720P(1280x720), VGA(640x480), QVGA (320x240) Mobile Stream@30fps: VGA(640x480), QVGA（320x24 ) Video Quality Adjustment 256Kbps ~ 8Mbps Bitrate Control Method CBR/VBR Streaming Features Triple-Stream (Main/Sub/Mobile) Protocol TCP/IP, HTTP ,DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP Web browser IE10/11, Safari V12.1+, Firefox V.52+, Google chrome V.57+,
Edge V.79+
Security IP address filter, strong password; Username and password
Streaming method Unicast/Multicast
Programming interface ONVIF (Profile S/G/T)
Environmental
Operating temperature/humidity -35°C ~ +60°C / ≤ 90%
Protection IP67
Electrical
Input voltage/current D12V / POE (IEEE802.3af)
Power consumption (IR off) DC12V: max. 3.5W, PoE: max. 4.5W
Power consumption (IR on) DC12V: max. 7.5W, PoE: max. 9.5W
Mechanical
Color/Material White / metal
Dimensions and weight 135 * 135 * 120 mm, 850g
5020
