AHD PROGRESS TURRET 2MP 2.8MM Camera - VIHD2TU36
THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)

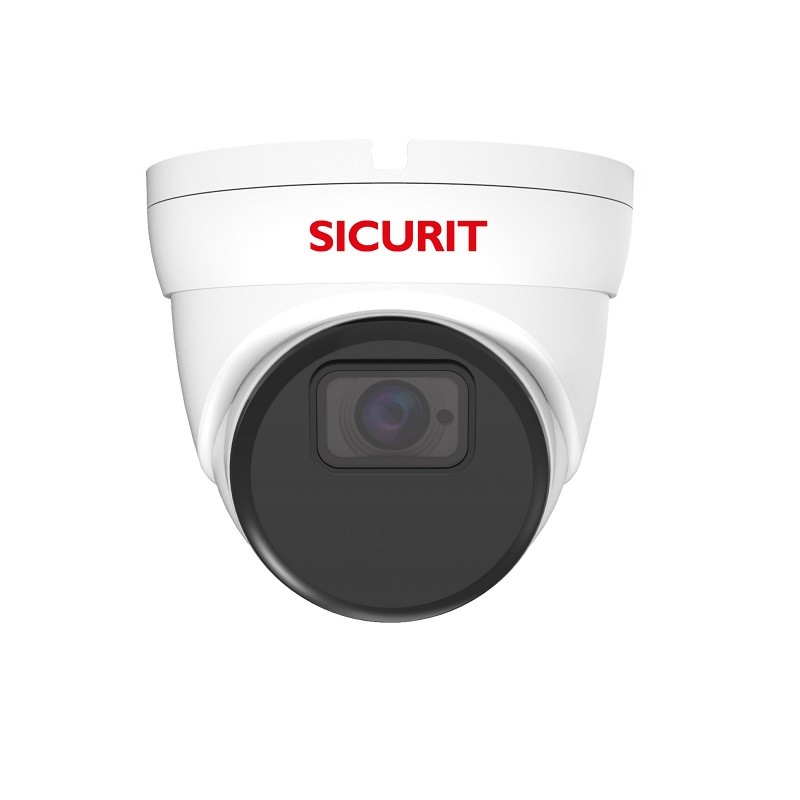

AHD PROGRESS TURRET Camera, 2MP 1920x1080, Fixed Lens 2.8MM, Progressive CMOS, COAX - 4 IN 1 - IR
TECHNICAL CHARACTERISTICS
Video
Sensor IMX307 1/2.8" Progressive CMOS
Scanning System Progressive Scan
Sensitivity [email protected] (AGC on), 0Lux with IR on
Video Output BNC
Resolution 2MP 1920 (H) × 1080 (V)
Frame Rate AHD/TVI/CVI: P/@25fps N/@30fps
CVBS: 960H
Aperture Ratio F1.6
Lens Type Fixed Lens 2.8mm
Audio -
Operational
IR Distance 20-30m
Day & night Ext / Color / B/W
Backlight compensation Off / User BLC
Wide Dynamic Range WDR (Off/On) / 120dB
Digital noise reduction 3D DNR
Auto control
White balance ATW
Electronic shutter speed Auto
Mirror inversion
Video transmission distance Max 300M (Cable: 5C 2V)
Environmental
Operating temperature / humidity -30°C ~ 55°C / 90%
Protection IP66
Electrical
Power supply 12VDC
IR off consumption ≤ 2W, IR on ≤ 4W
Mechanical
Color / Material White / metal
Dimensions Φ100x90mm
Laws and regulations
Safety CE LVD
EMC CE EMC, FCC
ROHS RoHS2.0
