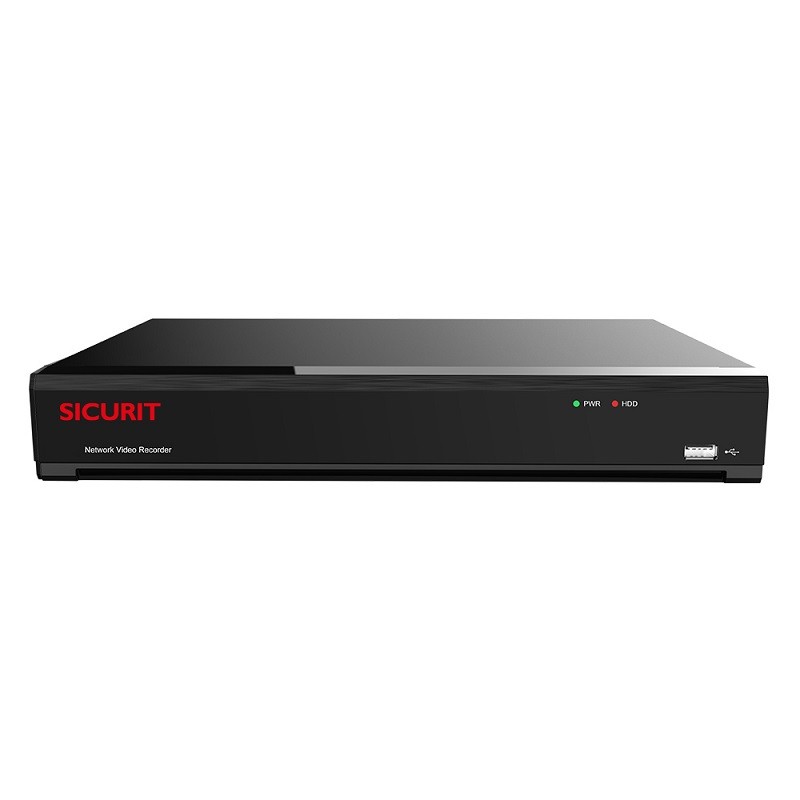

IP NVR Video Recorder 16CH AI PROGRESS - VINVR16L2
THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
4K “PROGRESS” NVR Video Recorder 16 Video Channels, H.264/H.264+/H.265/H.265+, IN/OUT Bandwidth 256/128, 2 SATA, each HDD up to 10TB, 2 RJ45 100/1000 Base-T, 1VGA FHD/1 HDMI FHD /1HDMI 4K
TECHNICAL CHARACTERISTICS
Resolution 8MP,5MP, 3MP,2MP(1080P),1.3MP(960P),1.0MP(720P)
Channels 16
IN/OUT Bandwidth 256/128
Audio Compression: G.711A;G.711U
Video: H.264/H.264+/H.265/H.265+
Frame Rate
4K: 60fps
4MP: 120fps
2MP: 240fps
MD Event (Sensitivity Level 1~8), Video Loss, Beep, Email, Mobile APP Push Notification
Playback Function Fast Forward/Backward (2x, 4x, 8x,16x)
Slow Forward (1/2x, 1/4x, 1/8x,1/16x)
Web Interface (Min. Required) IE10/11, Safari V12.1, Firefox V.52, Chrome V.57, Edge V.79
Protocol TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, SMTP, NTP,
SNMP,RTP/RTSP,UPnP,FTP
ONVIF Profile S
VGA 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080) HDMI1 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 2560*144 0, 3840*2160/EDID） HDMI2 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080） Ethernet asynchronous output 2 RJ45 100/1000 Base-T USB USB2.0*1 (front)
USB3.0*1+USB2.0*1 (rear)
Audio output 1
E-SATA 1
HDD 2 SATA, each HDD up to 10TB
Line in 1
RS485 1
Alarm input/output 16 inputs/1 outputs
Dimensions (WxDxH) 378*317*50 mm
Input voltage/current 12V/5A
Power consumption
(excluding HDD) 12 W
Operating temperature/humidity Temperature: -10°C~+50°C (14°F ~ 122°F)
Humidity: Less than 90%RH
5001
