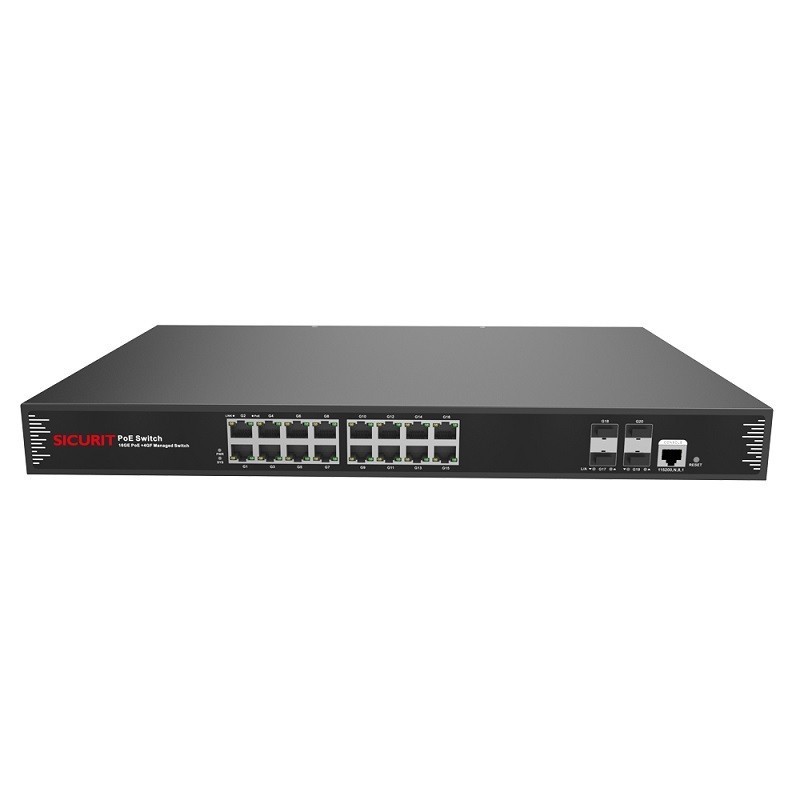

Managed PoE Switch 16 Ports + 4 Uplink copper ports SWPOE16GFM
THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive an email with the quote within 24H. Any doubts? Watch the TUTORIAL
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
Managed POE switch 10/100/1000M 16 ports + 4 fiber ports x uplink 100/1000M - the single PoE port can supply up to 30W - max total power 250W - 220V power supply, desktop/rack mounting
TECHNICAL FEATURES
Version: 10/100/1000M 16 ports + 4 fiber ports x uplink 100/1000M
Connectors: 16*10/100/1000Base-T PoE ports (data/power) -
4*100/1000Base-X uplink SFP slot ports (data) - 1 * RS232 console port (115200, N, 8.1)
Transmission Distance: Multiple Mode: 850nm/0~550M,
single mode: 1310nm/0~40km, 1550nm/0~120km
Network protocols: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Network Management Type: L2+
Performance: Bandwidth (Throughput) 192Gbps
PoE management: PoE operating status - Power delay start - PoE output priority configuration - PoE power supply total power limit - PoE operation and time scheduling - PoE output power assignment, off&af&at
Power per port: 30W
Maximum total power that can be delivered in PoE+: 250W
Power supply: Integrated power supply, AC100~240V 50-60Hz 2.2A
Consumption: Standby <16W, Full load <240W
Protections: 4KV 8/20us surge protection
Operating temperature: -20 ~ +55°C
Installation type: desktop, 1U 19 inch rack cabinet
Dimensions (L*W*H) mm: 440*290*44.5
