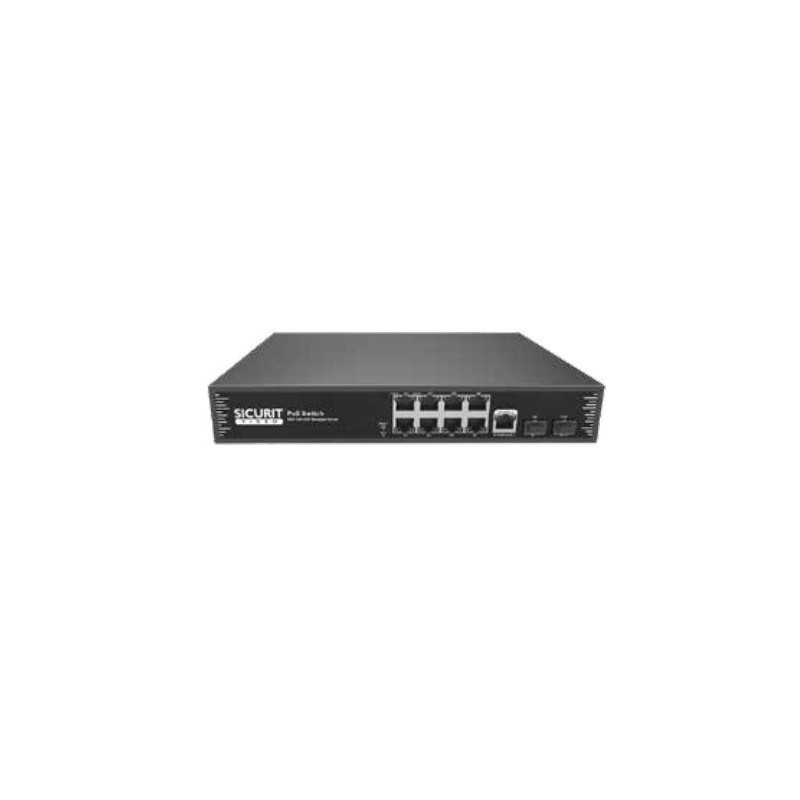

Managed PoE switch 1G + 2 Uplink 1G fiber ports - SWPOE8GFM
3534
Please Note: Regarding Security Systems, the compatibility of our components is guaranteed exclusively with the systems sold in Italy
PROMOS applied during CheckOut after choosing Courier
Italian destinations:
- from € 300 spent free shipping
- possibility of tax deduction
Other destinations (EU) :
- from € 300 spent, extra discount 5% on the order
Furthermore, for all destinations (Italy and EU):
- possibility of payment in 3 installments with PayPal
- loyalty program: 1 point for every € spent
Italian destinations:
- from € 300 spent free shipping
- possibility of tax deduction
Other destinations (EU) :
- from € 300 spent, extra discount 5% on the order
Furthermore, for all destinations (Italy and EU):
- possibility of payment in 3 installments with PayPal
- loyalty program: 1 point for every € spent
We ship the product to Italy and UE (Member Countries)
For the price of the product click on "ask a quote" and then on "open list" to fill out the request form with your details
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
Managed POE switch 1G + 2 fiber ports x 1G uplink - the single PoE port can supply up to 30W - total P. max 130W - power supply 220V - wall / desktop / rack mounting
Technical specifications
Version: 100Mbps / 1000Mbps PoE + + double 1Gbps fiber Uplink
Connectors: 8 x 10/100 / 1000Mbps PoE + on RJ45 - 2 SFP 100 / 1000Mbps uplink ports - 1000Base-X, 1 x RS232 console port
Transmission distance: 100Mbps on 100m, 1Gbps Multi-mode: 850nm / 0 ~ 550m, Single-mode: 1310nm / 0 ~ 40km, 1550nm / 0 ~ 120km
Protocols: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Network Management Type: L2 +
Performance: Bandwidth (Throughput) 192Gbps
PoE + protocol: port 1 to port 8 IEEE802.3af / at @ PoE +
PoE + management: Total power limit of the PoE + power supply - Allocation of PoE + output power, off / af / at - PoE + output priority configuration - PoE + operating status - Delayed power start - PoE + time and operation planning
Power per door: 30W
Maximum total power deliverable in PoE +: 130W
Power supply: AC 100 ~ 240V 50-60Hz
Consumption: Standby <8W, Full load ~ 130W
Protections: 4KV 8 / 20us surge protection
Operating temperature: -20 ~ + 55 ° C
Installation type: desktop, 1U rack
Size (mm): 270 * 181 * 44.5
