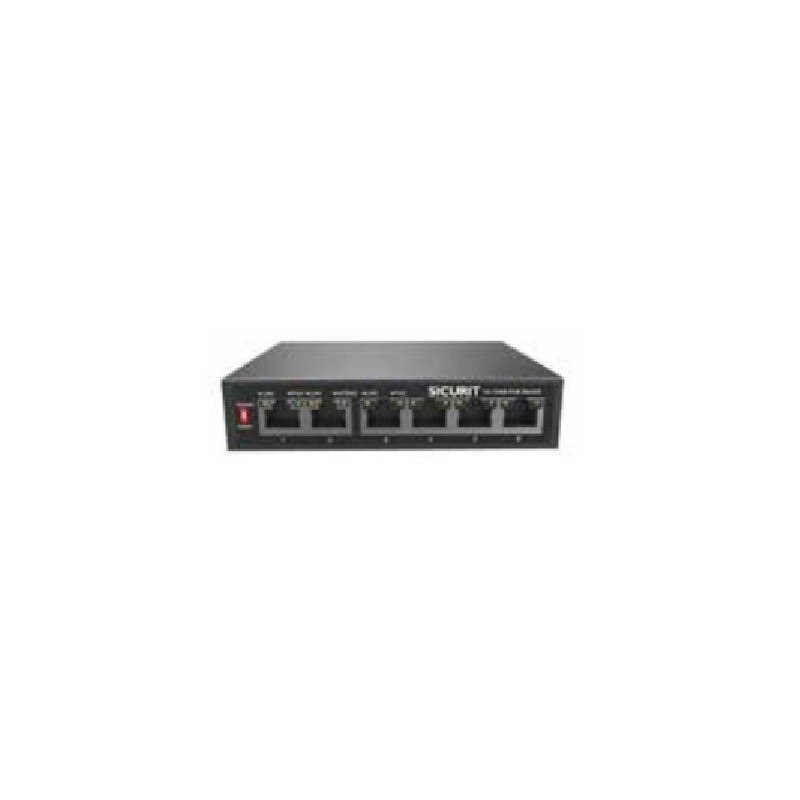

4 Port + 2 Port Uplink PoE Switch SWPOE4/65WL
THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive an email with the quote within 24H. Any doubts? Watch the TUTORIAL
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
Unmanaged PoE switch 10 / 100M 4 ports + 2 copper ports x Uplink - the single PoE port can supply up to 30W - P max tot 65W - external power supply - func. long distance, whatchdog - wall or desktop mounting
Technical specifications
Version: 100MBPS POE + + DOUBLE 100MBPS UPLINK
Connectors: 4 x 10 / 100Mbps PoE + on RJ45 - 2 uplink 10 / 100Mbps ports on RJ45
Transmission Distance: 100Mbps on 100m LONG DISTANCE function (10Mbps / 250m) from port 3 to port 6
Protocols: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
Functionality: -
Performance: Bandwidth (Throughput) 1.6Gbps
PoE + protocol: port 3 to port 6 IEEE802.3af / at @ PoE +
Power per door: 30W
Max total power deliverable in PoE +: 65W
Power supply: 52V (external power supply)
Consumption: Standby <4W, Full load ~ 65W
Protections: 4KV 8 / 20us surge protection
Operating temperature: -20 ~ + 55 ° C
Installation type: desktop, wall-mounted
Size (mm): 118 * 95 * 28
