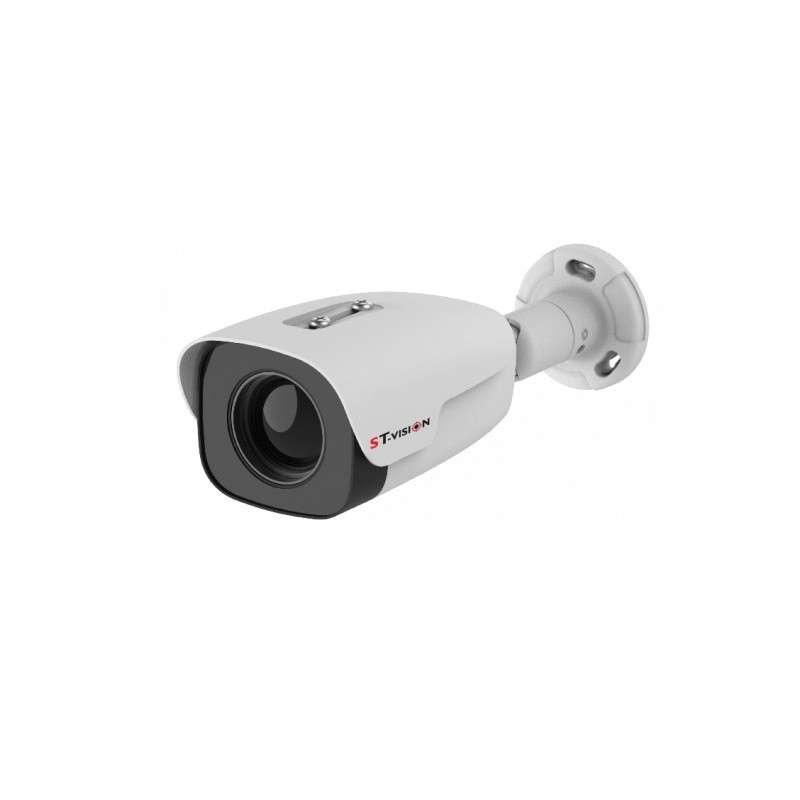

TETSTV55/640 ST-Vision Thermal Bullet Camera 55mm
THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive an email with the quote within 24H. Any doubts? Watch the TUTORIAL
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
Thanks to the cutting-edge 12 μm thermal sensor and an advanced processing algorithm, ST-Vision delivers razor-sharp images and superior detection range.
• Intelligent fire detection: Active and timely monitoring.
• Intelligent video analytics: Supports advanced features such as area-specific intrusion detection, tripwire detection, and associated multiple alarm management.
• Rugged, one-piece design: IP66 certified for dust and water protection.
• Flexible power supply: Supports 12 VDC.
• Simplified integration: ONVIF-compliant, includes dedicated SDK and support for NVRs and management software.
TECHNICAL SPECIFICATIONS
Thermal:
• Sensor type: VOx, uncooled FPA detectors
• Spectral range: 8~14 μm
• NETD: ≤40 mK (at 25°C, F#1.0, 50 Hz)
• Max. resolution: 640×512
• Pixel pitch: 12 μm
• Focal length: 35 mm / 55 mm
• Focus type: Athermal fixed focus
• Field of view: 12.5° × 10° / 8.0° × 6.4°
• F#: 1.0 / 1.0
Network functions:
• Network protocol: IPv4, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP,
DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGM P, ICMP, DHCP
• Interoperability: ONVIF, SDK
• Number of videos displayed: Supports up to 20 channels simultaneously
• User management: Up to 20 users, two levels: administrator and user
• Browser: IE, Chrome
Video parameters:
• Max. resolution: 1280×1024
• Image format: JPEG
• Audio compression standard: AAC/MPEG2-Layer2
• Video compression: H.264/H.265
• Main stream: 25 fps (1280×1024, 1024×768)
• Substream: 25 fps (640×512)
Intelligent functions:
• Fire alarm: Supports fire detection
• Intelligent video: Alarm-triggered recording, motion-triggered recording Disconnection
• Intelligent Alarms: Supports triggering alarms and linked alarms
in the event of network disconnection, IP address conflict, SD card error, unauthorized access, and fire alarm.
• Intelligent Detection: Supports event analysis functions such as area intrusion, alarm line intrusion, etc.
• Voice Intercom: Supports two-way voice intercom
• Alarm Connection: Video/Snapshots/Email/Alarm Output
System Interfaces:
• Power Interface: 12V DC ±10%
• Communication Interface: 1 x 10M/100M self-adaptive RJ45 Ethernet port
• Audio Interface: 1 channel audio input, 1 channel audio output
• Storage Interface: Micro SD memory card (maximum 256G)
• RS485: 1 channel RS485
• Video: 1 channel analog video
General Specifications:
• Operating Temperature and Humidity: -40°C to +60°C; <95% relative humidity
• Protection rating: IP66
• Power consumption: ≤4 W
• Dimensions (mm): 334.7 × 121.5 × 104.4 mm
• Weight: ≤1.5 kg
EFFECTIVE RANGE
The recommended distances for detecting, recognizing, and identifying people (1.8 × 0.5 m) and vehicles (1.4 × 4.0 m) are as follows:
• DD stands for Detection Distance;
• RD indicates the recognition distance;
• ID indicates the identification distance;
Supplied Lens: 35mm
• DD (vehicle): 4,472 m
• DD (person): 1,458 m
• RD (vehicle): 1,118 m
• RD (person): 365 m
• ID: (vehicle): 559 m
• ID: (person): 182 m
Supplied Lens: 55mm
• DD (vehicle): 7,028 m
• DD (person): 2,291 m
• RD (vehicle): 1,757 m
• RD (person): 574 m
• ID: (vehicle): 878 m
• ID: (person): 286 m
EFFECTIVE RANGE FOR INTELLIGENT ANALYSIS
Supplied Lens: 35mm
• Target recognition distance (person): 365 m
• Target recognition distance Target (vehicle): 1118 m
• Temperature measurement (target size: 2 m x 2 m): 972 m
• Temperature measurement (size: 1 m x 1 m): 486 m
• Fire detection (Target size: 2 m x 2 m): 3889 m
• Fire detection (Target size: 1 m x 1 m): 1944 m
EFFECTIVE RANGE FOR INTELLIGENT ANALYSIS
Supplied lens: 55mm
• Target recognition distance (person): 574 m
• Target recognition distance (vehicle): 1757 m
• Temperature measurement (target size: 2 m x 2 m): 1528 m
• Temperature measurement (size: 1 m x 1 m): 764 m
• Fire detection (Target size: 2 m x 2 ... m): 6111 m
• Fire detection (Target size: 1 m x 1 m): 3056 m
APPLICATION SCENARIOS
• Perimeter surveillance
• High-altitude urban surveillance
• Critical infrastructure protection
• River monitoring
