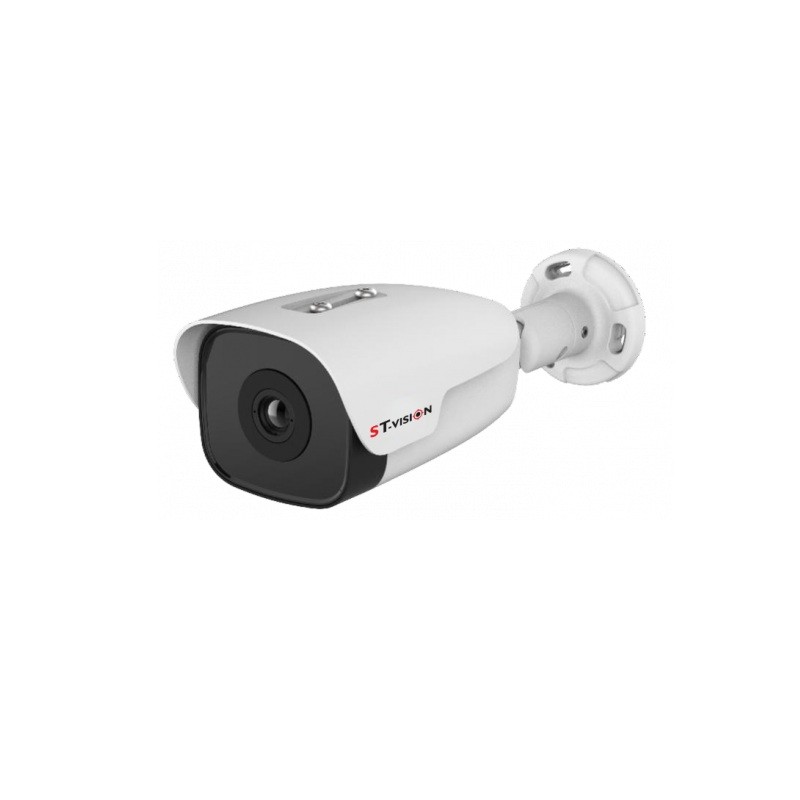

TETSTV25/640 ST-Vision Thermal Bullet Camera 25mm

Quantity
Add to Wishlist
Compare

THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive an email with the quote within 24H. Any doubts? Watch the TUTORIAL
Categories:
Thermal cameras

Tags:

sicurit camera safety bullet thermal ST-Vision TETSTV25/640
  Security policy

We use the SSL standard to ensure security during payment

  Delivery policy

Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)

  Return policy

Purchases can be returned within 14 days (as per terms and conditions of sale)

Thanks to the cutting-edge 12 μm thermal sensor and an advanced processing algorithm, ST-Vision delivers razor-sharp images and superior detection range.

• Intelligent fire detection: Active and timely monitoring.

• Intelligent video analytics: Supports advanced features such as area-specific intrusion detection, tripwire detection, and associated multiple alarm management.

• Rugged, one-piece design: IP66 certified for dust and water protection.

• Flexible power supply: Supports 12VDC and PoE.

• Simplified integration: ONVIF-compliant, includes dedicated SDK and support for NVRs and management software

TECHNICAL SPECIFICATIONS

Thermal:

• Sensor type: VOx, uncooled FPA detectors

• Spectral range: 8~14 μm

• NETD: ≤40 mK (at 25°C, F#1.0, 25 Hz)

• Max. resolution: 640×512

• Pixel pitch: 12 μm

• Focal length: 9.1 mm / 13 mm / 19 mm / 25 mm

• Focus type: Athermal fixed focus

• Field of view: 48° × 38° / 32.9° × 26.6° / 22.9° × 18.4° / 17.5° × 14.0°

• F#: 1.0 / 1.0 / 1.0 / 1.0

• IFOV 1.32 mrad / 0.92 mrad / 0.63 mrad / 0.48 mrad

• Color Palettes: 20 palettes are available, including

Whitehot/Blackhot/Rainbow.

Network Features:

• Network Protocol: IPv4, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP,

DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGM P, ICMP, DHCP

• Interoperability: ONVIF, SDK

• Number of Videos Displayed: Supports up to 20 channels simultaneously

• User Management: Up to 20 users, two levels: administrator and user

• Browser: IE, Chrome

Video Parameters:

• Max. Resolution: 1280×1024

• Image Format: JPEG

• Audio Compression Standard: G.711a/G.711Mu/AAC/MPEG2-Layer2

• Video Compression: H.264/H.265

• Main Stream: 25 fps (1280×1024, 1024×768)

• Stream Secondary: 25 fps (384×288)

Temperature Measurement:

• Measurement range: -20℃ to +550℃

• Measurement accuracy: ±2℃ or ±2% (whichever is greater)

• Temperature Analysis: Supports temperature measurement tools such as full-image, spot, line, region, and linkage alerts

Smart Functions:

• Fire Alarm: Supports fire detection

• Smart Video: Alarm-triggered recording, disconnection-triggered recording

• Smart Alarms: Supports alarm and linked alarm triggering in the event of network disconnection, IP address conflict, SD card error, unauthorized access, and fire alarm

• Smart Detection: Supports event analysis functions such as area intrusion, alarm line intrusion, etc.

• Voice Intercom: Supports two-way voice intercom

• Alarm Connection: Video/Snapshots/Email/Alarm Output

System Interfaces:

• Power Interface: 12V DC ±25% / PoE (802.3at)

• Communication Interface: 1 x 10M/100M adaptive RJ45 Ethernet port

• Audio Interface: 1 channel audio input, 1 channel audio output

• Alarm Interface: 2 channels alarm input, 2 channels alarm output

• Storage Interface: Micro SD memory card (maximum 256G)

• RS485: 1 channel RS485

General Specifications:

• Operating Temperature and Humidity: -40°C to +70°C; <95% relative humidity

• Protection rating: IP66

• Power consumption: ≤4 W

• Dimensions (mm): 319.5 × 121.5 × 103.6 mm

• Weight: ≤1.5 kg

EFFECTIVE RANGE

The recommended distances for detecting, recognizing, and identifying people (1.8 × 0.5 m) and vehicles (1.4 × 4.0 m) are as follows:

• DD stands for Detection Distance;

• RD indicates the recognition distance;

• ID indicates the identification distance;

Supplied lens: 9.1 mm

• DD (vehicle): 1163 m

• DD (person): 379 m

• RD (vehicle): 291 m

• RD (person): 95 m

• ID: (vehicle): 145 m

• ID: (person): 47 m

Supplied lens: 13 mm

• DD (vehicle): 1661 m

• DD (person): 542 m

• RD (vehicle): 415 m

• RD (person): 135 m

• ID: (vehicle): 208 m

• ID: (person): 68 m

Supplied lens: 19 mm

• DD (vehicle): 2428 m

• DD (person): 792 m

• RD (vehicle): 607 m

• RD (person): 198 m

• ID: (vehicle): 303 m

• ID: (person): 99 m

Supplied lens: 25 mm

• DD (vehicle): 3194 m

• DD (person): 1042 m

• RD (vehicle): 799 m

• RD (person): 260 m

• ID: (vehicle): 399 m

• ID: (person): 130 m

EFFECTIVE RANGE FOR INTELLIGENT ANALYSIS

Supplied lens: 9.1 mm

• Target recognition distance (person): 71 m

• Target recognition distance (vehicle): 218 m

• Temperature measurement (target size: 2 m x 2 m): 253 m

• Temperature measurement (size: 1 m x 1 m): 126 m

• Fire Detection (Target size: 2 m x 2 m): 1011 m

• Fire Detection (Target size: 1 m x 1 m): 506 m

Supplied Lens: 13 mm

• Target Recognition Distance (Person): 102 m

• Target Recognition Distance (Vehicle): 311 m

• Temperature Measurement (Target size: 2 m x 2 m): 361 m

• Temperature Measurement (Dimensions: 1 m x 1 m): 181 m

• Fire Detection (Target size: 2 m x 2 m): 1444 m

• Fire Detection (Target size: 1 m x 1 m): 722 m

Supplied Lens: 19 mm

• Target Recognition Distance (Person): 148 m

• Target Recognition Distance (Vehicle): 455 m

• Temperature Measurement (Dimensions: Target Size: 2 m x 2 m): 528 m

• Temperature Measurement (Dimensions: 1 m x 1 m): 264 m

• Fire Detection (Target Size: 2 m x 2 m): 2111 m

• Fire Detection (Target Size: 1 m x 1 m): 1056 m

Supplied Lens: 25 mm

• Target Recognition Distance (Person): 195 m

• Target Recognition Distance (Vehicle): 599 m

• Temperature Measurement (Target Size: 2 m x 2 m): 694 m

• Temperature Measurement (Dimensions: 1 m x 1 m): 347 m

• Fire Detection (Target Size: 2 m x 2 m): 2778 m

• Fire Detection (Target Size: 1 m x 1 m): 1389 m

APPLICATION SCENARIOS

• Perimeter surveillance

• High-altitude urban surveillance

• Critical infrastructure protection

• River monitoring
