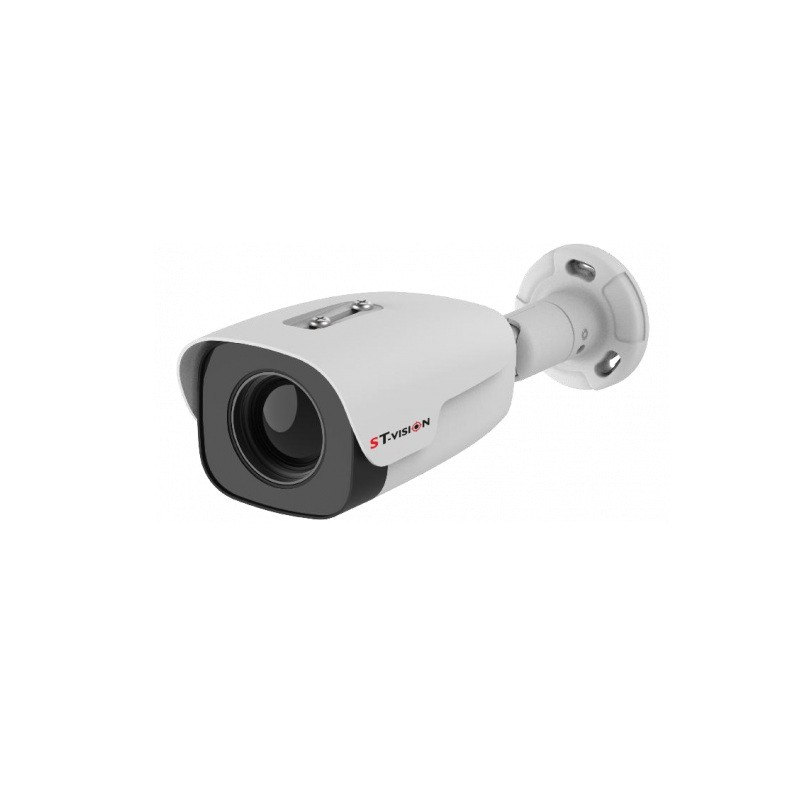

TETSTV35/640 ST-Vision Thermal Bullet Camera 35mm

Quantity
Add to Wishlist
Compare

THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive an email with the quote within 24H. Any doubts? Watch the TUTORIAL
Categories:
Thermal cameras

Tags:

sicurit camera safety bullet thermal ST-Vision TETSTV35/640
  Security policy

We use the SSL standard to ensure security during payment

  Delivery policy

Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)

  Return policy

Purchases can be returned within 14 days (as per terms and conditions of sale)

Thanks to the cutting-edge 12 μm thermal sensor and an advanced processing algorithm, ST-Vision delivers razor-sharp images and superior detection range.

• Intelligent fire detection: Active and timely monitoring.

• Intelligent video analytics: Supports advanced features such as area-specific intrusion detection, tripwire detection, and associated multiple alarm management.

• Rugged, one-piece design: IP66 certified for dust and water protection.

• Flexible power supply: Supports 12 VDC.

• Simplified integration: ONVIF-compliant, includes dedicated SDK and support for NVRs and management software.

TECHNICAL SPECIFICATIONS

Thermal:

• Sensor type: VOx, uncooled FPA detectors

• Spectral range: 8~14 μm

• NETD: ≤40 mK (at 25°C, F#1.0, 50 Hz)

• Max. resolution: 640×512

• Pixel pitch: 12 μm

• Focal length: 35 mm / 55 mm

• Focus type: Athermal fixed focus

• Field of view: 12.5° × 10° / 8.0° × 6.4°

• F#: 1.0 / 1.0

Network functions:

• Network protocol: IPv4, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP,

DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGM P, ICMP, DHCP

• Interoperability: ONVIF, SDK

• Number of videos displayed: Supports up to 20 channels simultaneously

• User management: Up to 20 users, two levels: administrator and user

• Browser: IE, Chrome

Video parameters:

• Max. resolution: 1280×1024

• Image format: JPEG

• Audio compression standard: AAC/MPEG2-Layer2

• Video compression: H.264/H.265

• Main stream: 25 fps (1280×1024, 1024×768)

• Substream: 25 fps (640×512)

Intelligent functions:

• Fire alarm: Supports fire detection

• Intelligent video: Alarm-triggered recording, motion-triggered recording Disconnection

• Intelligent Alarms: Supports triggering alarms and linked alarms

in the event of network disconnection, IP address conflict, SD card error, unauthorized access, and fire alarm.

• Intelligent Detection: Supports event analysis functions such as area intrusion, alarm line intrusion, etc.

• Voice Intercom: Supports two-way voice intercom

• Alarm Connection: Video/Snapshots/Email/Alarm Output

System Interfaces:

• Power Interface: 12V DC ±10%

• Communication Interface: 1 x 10M/100M self-adaptive RJ45 Ethernet port

• Audio Interface: 1 channel audio input, 1 channel audio output

• Storage Interface: Micro SD memory card (maximum 256G)

• RS485: 1 channel RS485

• Video: 1 channel analog video

General Specifications:

• Operating Temperature and Humidity: -40°C to +60°C; <95% relative humidity

• Protection rating: IP66

• Power consumption: ≤4 W

• Dimensions (mm): 334.7 × 121.5 × 104.4 mm

• Weight: ≤1.5 kg

EFFECTIVE RANGE

The recommended distances for detecting, recognizing, and identifying people (1.8 × 0.5 m) and vehicles (1.4 × 4.0 m) are as follows:

• DD stands for Detection Distance;

• RD indicates the recognition distance;

• ID indicates the identification distance;

Supplied Lens: 35mm

• DD (vehicle): 4,472 m

• DD (person): 1,458 m

• RD (vehicle): 1,118 m

• RD (person): 365 m

• ID: (vehicle): 559 m

• ID: (person): 182 m

Supplied Lens: 55mm

• DD (vehicle): 7,028 m

• DD (person): 2,291 m

• RD (vehicle): 1,757 m

• RD (person): 574 m

• ID: (vehicle): 878 m

• ID: (person): 286 m

EFFECTIVE RANGE FOR INTELLIGENT ANALYSIS

Supplied Lens: 35mm

• Target recognition distance (person): 365 m

• Target recognition distance Target (vehicle): 1118 m

• Temperature measurement (target size: 2 m x 2 m): 972 m

• Temperature measurement (size: 1 m x 1 m): 486 m

• Fire detection (Target size: 2 m x 2 m): 3889 m

• Fire detection (Target size: 1 m x 1 m): 1944 m

EFFECTIVE RANGE FOR INTELLIGENT ANALYSIS

Supplied lens: 55mm

• Target recognition distance (person): 574 m

• Target recognition distance (vehicle): 1757 m

• Temperature measurement (target size: 2 m x 2 m): 1528 m

• Temperature measurement (size: 1 m x 1 m): 764 m

• Fire detection (Target size: 2 m x 2 ... m): 6111 m

• Fire detection (Target size: 1 m x 1 m): 3056 m

APPLICATION SCENARIOS

• Perimeter surveillance

• High-altitude urban surveillance

• Critical infrastructure protection

• River monitoring
