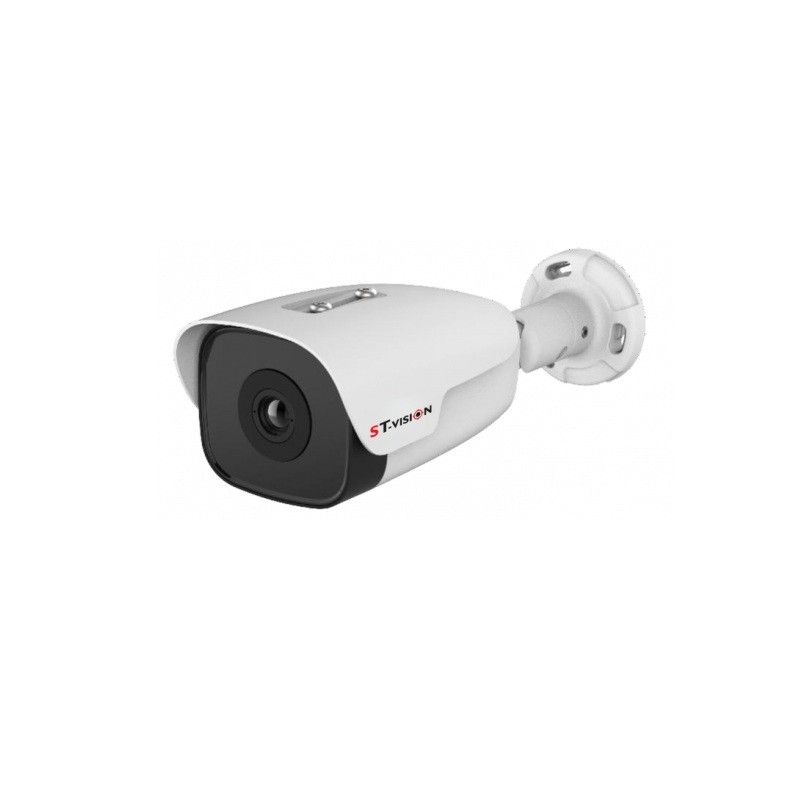

TETSTV13/640 ST-Vision Thermal Bullet Camera 13mm
THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive an email with the quote within 24H. Any doubts? Watch the TUTORIAL
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
Thanks to the cutting-edge 12 μm thermal sensor and an advanced processing algorithm, ST-Vision delivers razor-sharp images and superior detection range.
• Intelligent fire detection: Active and timely monitoring.
• Intelligent video analytics: Supports advanced features such as area-specific intrusion detection, tripwire detection, and associated multiple alarm management.
• Rugged, one-piece design: IP66 certified for dust and water protection.
• Flexible power supply: Supports 12VDC and PoE.
• Simplified integration: ONVIF-compliant, includes dedicated SDK and support for NVRs and management software
TECHNICAL SPECIFICATIONS
Thermal:
• Sensor type: VOx, uncooled FPA detectors
• Spectral range: 8~14 μm
• NETD: ≤40 mK (at 25°C, F#1.0, 25 Hz)
• Max. resolution: 640×512
• Pixel pitch: 12 μm
• Focal length: 9.1 mm / 13 mm / 19 mm / 25 mm
• Focus type: Athermal fixed focus
• Field of view: 48° × 38° / 32.9° × 26.6° / 22.9° × 18.4° / 17.5° × 14.0°
• F#: 1.0 / 1.0 / 1.0 / 1.0
• IFOV 1.32 mrad / 0.92 mrad / 0.63 mrad / 0.48 mrad
• Color Palettes: 20 palettes are available, including
Whitehot/Blackhot/Rainbow.
Network Features:
• Network Protocol: IPv4, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP,
DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGM P, ICMP, DHCP
• Interoperability: ONVIF, SDK
• Number of Videos Displayed: Supports up to 20 channels simultaneously
• User Management: Up to 20 users, two levels: administrator and user
• Browser: IE, Chrome
Video Parameters:
• Max. Resolution: 1280×1024
• Image Format: JPEG
• Audio Compression Standard: G.711a/G.711Mu/AAC/MPEG2-Layer2
• Video Compression: H.264/H.265
• Main Stream: 25 fps (1280×1024, 1024×768)
• Stream Secondary: 25 fps (384×288)
Temperature Measurement:
• Measurement range: -20℃ to +550℃
• Measurement accuracy: ±2℃ or ±2% (whichever is greater)
• Temperature Analysis: Supports temperature measurement tools such as full-image, spot, line, region, and linkage alerts
Smart Functions:
• Fire Alarm: Supports fire detection
• Smart Video: Alarm-triggered recording, disconnection-triggered recording
• Smart Alarms: Supports alarm and linked alarm triggering in the event of network disconnection, IP address conflict, SD card error, unauthorized access, and fire alarm
• Smart Detection: Supports event analysis functions such as area intrusion, alarm line intrusion, etc.
• Voice Intercom: Supports two-way voice intercom
• Alarm Connection: Video/Snapshots/Email/Alarm Output
System Interfaces:
• Power Interface: 12V DC ±25% / PoE (802.3at)
• Communication Interface: 1 x 10M/100M adaptive RJ45 Ethernet port
• Audio Interface: 1 channel audio input, 1 channel audio output
• Alarm Interface: 2 channels alarm input, 2 channels alarm output
• Storage Interface: Micro SD memory card (maximum 256G)
• RS485: 1 channel RS485
General Specifications:
• Operating Temperature and Humidity: -40°C to +70°C; <95% relative humidity
• Protection rating: IP66
• Power consumption: ≤4 W
• Dimensions (mm): 319.5 × 121.5 × 103.6 mm
• Weight: ≤1.5 kg
EFFECTIVE RANGE
The recommended distances for detecting, recognizing, and identifying people (1.8 × 0.5 m) and vehicles (1.4 × 4.0 m) are as follows:
• DD stands for Detection Distance;
• RD indicates the recognition distance;
• ID indicates the identification distance;
Supplied lens: 9.1 mm
• DD (vehicle): 1163 m
• DD (person): 379 m
• RD (vehicle): 291 m
• RD (person): 95 m
• ID: (vehicle): 145 m
• ID: (person): 47 m
Supplied lens: 13 mm
• DD (vehicle): 1661 m
• DD (person): 542 m
• RD (vehicle): 415 m
• RD (person): 135 m
• ID: (vehicle): 208 m
• ID: (person): 68 m
Supplied lens: 19 mm
• DD (vehicle): 2428 m
• DD (person): 792 m
• RD (vehicle): 607 m
• RD (person): 198 m
• ID: (vehicle): 303 m
• ID: (person): 99 m
Supplied lens: 25 mm
• DD (vehicle): 3194 m
• DD (person): 1042 m
• RD (vehicle): 799 m
• RD (person): 260 m
• ID: (vehicle): 399 m
• ID: (person): 130 m
EFFECTIVE RANGE FOR INTELLIGENT ANALYSIS
Supplied lens: 9.1 mm
• Target recognition distance (person): 71 m
• Target recognition distance (vehicle): 218 m
• Temperature measurement (target size: 2 m x 2 m): 253 m
• Temperature measurement (size: 1 m x 1 m): 126 m
• Fire Detection (Target size: 2 m x 2 m): 1011 m
• Fire Detection (Target size: 1 m x 1 m): 506 m
Supplied Lens: 13 mm
• Target Recognition Distance (Person): 102 m
• Target Recognition Distance (Vehicle): 311 m
• Temperature Measurement (Target size: 2 m x 2 m): 361 m
• Temperature Measurement (Dimensions: 1 m x 1 m): 181 m
• Fire Detection (Target size: 2 m x 2 m): 1444 m
• Fire Detection (Target size: 1 m x 1 m): 722 m
Supplied Lens: 19 mm
• Target Recognition Distance (Person): 148 m
• Target Recognition Distance (Vehicle): 455 m
• Temperature Measurement (Dimensions: Target Size: 2 m x 2 m): 528 m
• Temperature Measurement (Dimensions: 1 m x 1 m): 264 m
• Fire Detection (Target Size: 2 m x 2 m): 2111 m
• Fire Detection (Target Size: 1 m x 1 m): 1056 m
Supplied Lens: 25 mm
• Target Recognition Distance (Person): 195 m
• Target Recognition Distance (Vehicle): 599 m
• Temperature Measurement (Target Size: 2 m x 2 m): 694 m
• Temperature Measurement (Dimensions: 1 m x 1 m): 347 m
• Fire Detection (Target Size: 2 m x 2 m): 2778 m
• Fire Detection (Target Size: 1 m x 1 m): 1389 m
APPLICATION SCENARIOS
• Perimeter surveillance
• High-altitude urban surveillance
• Critical infrastructure protection
• River monitoring
