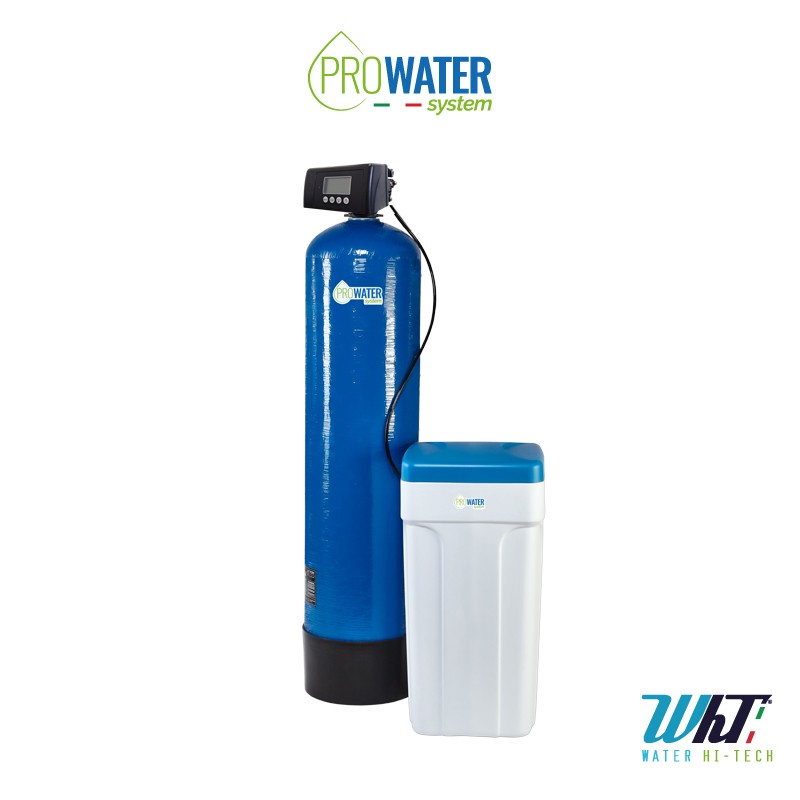

The DT 19 FZ 2 Volume is a two-body water softener from the PROWATER SYSTEM line, designed to reduce water hardness and limit limescale formation in residential and commercial systems.
The system uses 19 liters of resin and is equipped with an FZ 2 volume valve, with automatic regeneration management based on the volume of water treated.
With a cyclic capacity of 105 m³/°F, a flow rate of 2000 L/h, and an 85 L brine tank, the DT19 FZ 2 Volume model is suitable for domestic and residential installations requiring limescale protection, volumetric management, and advanced valve control.
System Structure
- Fiberglass-reinforced polyethylene tank
- Separate 85 L brine tank
- 19 liters of resin
- 12V power supply with included power supply
- Dimensions refer to the D 240 x 890 mm tank
Valve Functions - Advanced FZ 2 management
- Integrated mixing screw for quick adjustment of water hardness
- Forced regeneration function
- Sterilization kit can be set and controlled from the programmer
- Connection for dosing pump controlled from the programmer
- Relay connection with integrated micro switch on the programmer
- Large backlit display with time, day of the week, regeneration type, and residual capacity
- 9 languages available in the settings menu
Product Technical Specifications
- Code DT19FZ2
- Model DOUBLE BODY DT 19 FZ 2 Volume
- Resin liters 19 L
- Cyclic capacity 105 m³/°F
- Flow rate 2000 L/h
- Salt reserve 85 L
Technical Specifications for the FZ 2 Volumetric Valve
- FZ 2 Valve
- 3/4" or 1" connections
- Volumetric control
- Volumetric regeneration with forced regeneration
- Operating pressure 6 bar
- Maximum temperature 30°C
Technical Notes:
- Install a pressure reducer and a check valve upstream of the system. Not included.
- For correct sizing and operation, detailed chemical, physical, and microbiological analyses are required. Our technical office will then be able to recommend the most suitable model for your needs.
- This is a domestic appliance for the treatment of drinking water. The system requires routine maintenance.
- Depending on the flow rate, hardness leaks may occur: with a minimum flow rate of less than 2°F and with a maximum flow rate of less than 4°F.
- The included backup battery allows the valve's programming to be retained in the event of a power outage. For greater operational safety, a 9-volt backup battery (not included) can also be installed, allowing the valve to return to the service position during a power outage.
ATTENTION: The bypass kit, unless specified in the quote request, will be supplied in the 3/4" version (1" alternative ONLY ON REQUEST).
