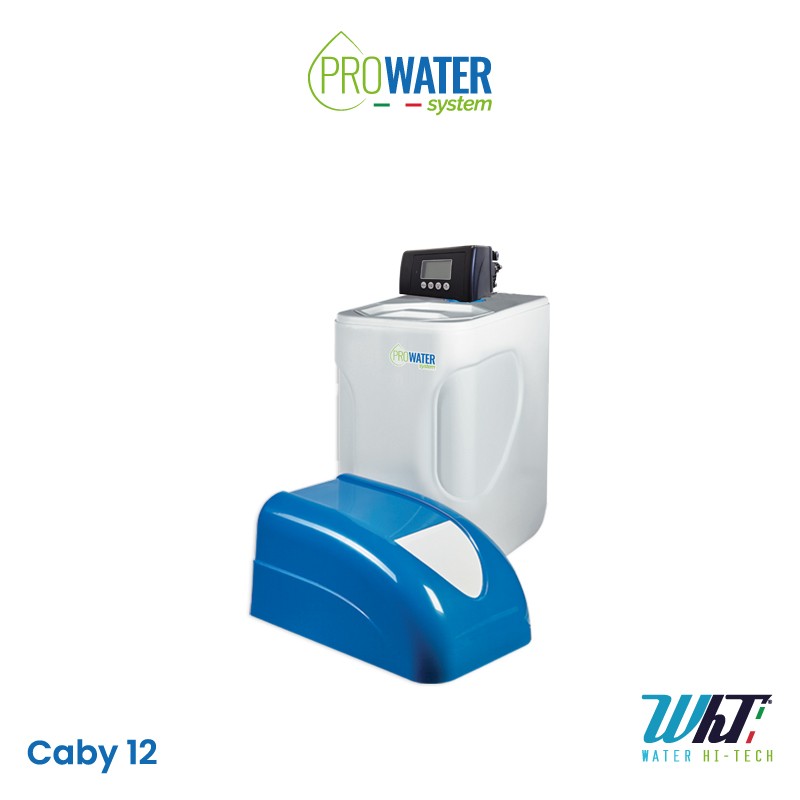

The CABY 12 FZ 2 Volume is a water softener from the PROWATER SYSTEM line, designed to reduce water hardness and limit limescale buildup in systems and appliances connected to the water mains.
The system uses 12 liters of resin and is equipped with an FZ 2 volume valve, with automatic regeneration management based on the volume of water treated.
With a cyclic capacity of 66 m³/°F, an indicative flow rate of 2500 L/h, and a 40 L salt reserve, the CABY 12 FZ 2 Volume is suitable for installations requiring limescale protection, regeneration control, and good operating autonomy.
System Structure
- Fiberglass-reinforced polyethylene tank
- HDPE cabinet body
- Version without top cover
- Power supply included
- 40 L salt reservoir
- Dimensions (mm): H 670 x W 320 x D 500
Valve Functions - Advanced FZ 2 management
- Integrated mixing screw to adjust water hardness
- Forced regeneration function
- Restrictor adjustable and controllable from the programmer
- Connection for dosing pump controllable from the programmer
- Backlit display with residual cyclic capacity
Product Technical Specifications
- Code CB12FZ2
- Model CABY Mini 12 FZ 2 Volume
- Resin liters 12 L
- Cyclic capacity 66 m³/°F
- Flow rate 2500 L/h
- Salt reservoir 40 L
Technical Specifications FZ 2 Volume Valve
- FZ 2 Valve
- Connections 3/4" or 1"
- Volumetric control
- Volumetric regeneration with forced regeneration
- Operating pressure 6 bar
- Maximum temperature 30°C
Technical notes:
- Install a pressure reducer and a check valve upstream of the system. Not included.
- For correct sizing and operation, detailed chemical, physical, and microbiological analyses are required. Our technical office will then be able to recommend the most suitable model for your needs.
- Domestic equipment for the treatment of drinking water. The system requires routine maintenance.
- Depending on the flow rate, hardness leaks may occur: with a minimum flow rate of less than 2°F and with a maximum flow rate of less than 4°F.
- A 9-volt backup battery (not included) can be installed, allowing the valve to return to the service position in the event of a power outage.
ATTENTION: The bypass kit, if not already specified in the quote request, will be supplied in the 3/4" version (1" alternative ONLY ON REQUEST)
