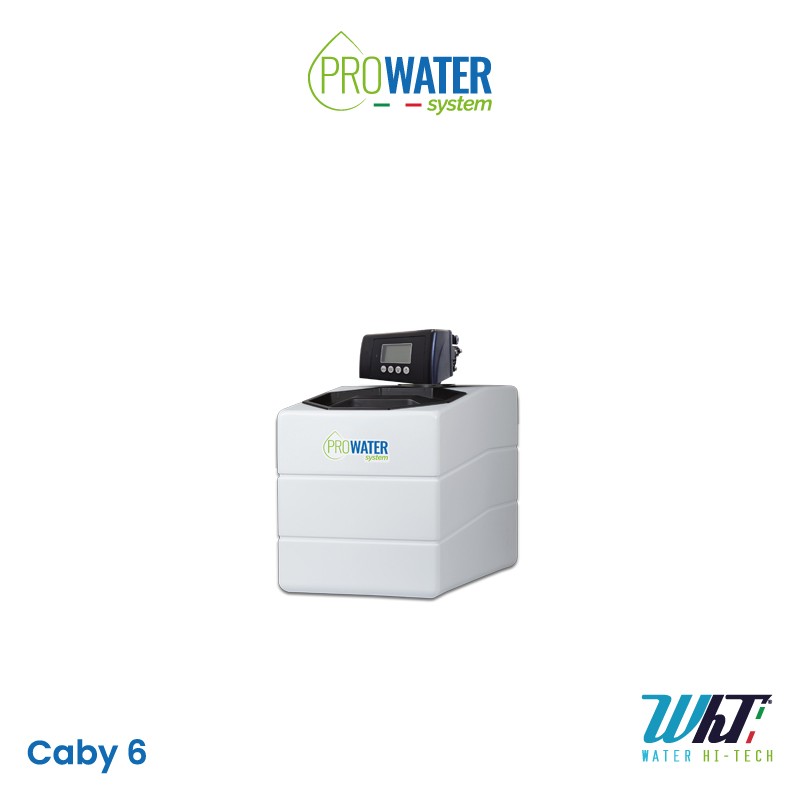

The CABY Mini 6 FZ 2 Volume is a compact water softener from the PROWATER SYSTEM line, designed to reduce water hardness and limit limescale buildup in systems and appliances connected to the water mains.
The system uses 6 liters of resin and is equipped with an FZ 2 volume valve, with automatic regeneration management based on the volume of water treated. This model is supplied without a top cover.
With a cyclic capacity of 33 m³/°F, an indicative flow rate of 1500 L/h, and a 15 L salt reserve, the CABY Mini 6 FZ 2 Volume is suitable for compact installations requiring limescale protection, regeneration control, and a small footprint.
System Structure
- Mini cabinet without top cover
- Fiberglass-reinforced polyethylene tank
- HDPE cabinet body
- Version without top cover
- Power supply included
- 15 L salt reservoir
- Dimensions (mm): H 480 x W 240 x D 440
Valve Functions - Advanced FZ 2 management
- Integrated mixing screw to adjust water hardness
- Forced regeneration function
- Restrictor adjustable and controllable from the programmer
- Connection for dosing pump controllable from the programmer
- Backlit display with residual cyclic capacity
Product Technical Specifications
- Code CB06FZ2
- Model CABY Mini 6 FZ 2 Volume
- Version Without top cover
- Resin liters 6 L
- Cyclic capacity 33 m³/°F
- Flow rate 1500 L/h
- Salt reservoir 15 L
FZ 2 Volume Valve Technical Specifications
- Valve FZ 2
- 3/4" or 1" connections
- Volumetric control
- Volumetric regeneration with forced regeneration
- Operating pressure 6 bar
- Maximum temperature 30°C
Technical notes:
- Install a pressure reducer and a check valve upstream of the system. Not included.
- For correct sizing and operation, detailed chemical, physical, and microbiological analyses are required. Our technical office will then be able to recommend the most suitable model for your needs.
- Domestic equipment for the treatment of drinking water. The system requires routine maintenance.
- Depending on the flow rate, hardness leaks may occur: with a minimum flow rate of less than 2°F and with a maximum flow rate of less than 4°F.
- A 9-volt backup battery (not included) can be installed, allowing the valve to return to the service position in the event of a power outage.
PLEASE NOTE: The bypass kit, if not already specified in the quote request, will be supplied in the 3/4" version (1" alternative ONLY ON REQUEST)
