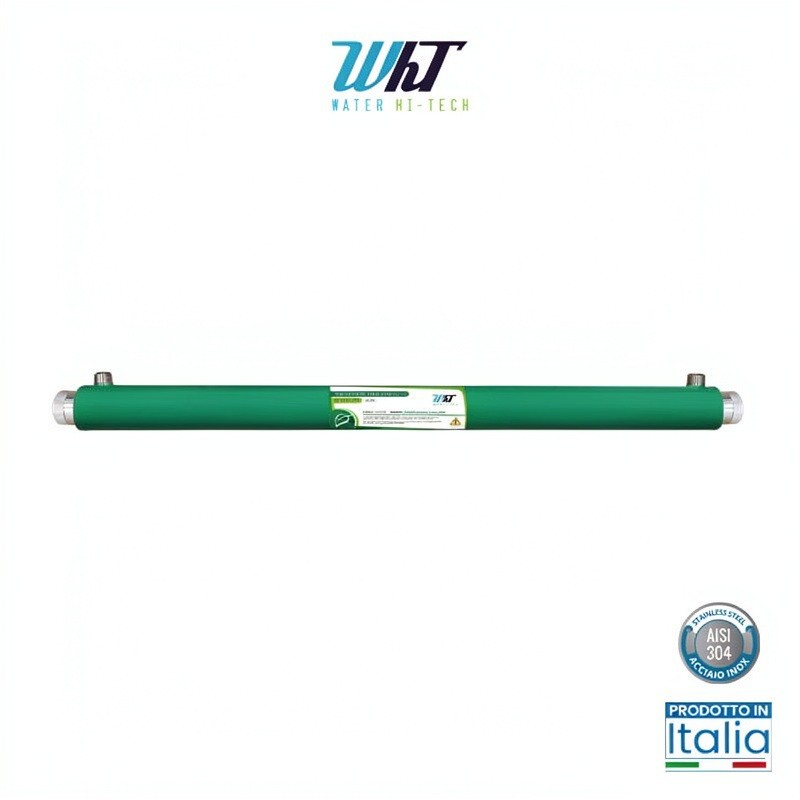

UV55 S UV Sterilizer in AISI 304 - 1 x 55W 2640 l/h
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Indicative images. Specifications are subject to change without notice - Order processing time: approximately 2-3 working days from advance payment
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
S-line Series UV55 Sterilizer
The S-line Series sterilizer is designed to offer excellent performance and maximum reliability in a compact format, ideal for both domestic and professional applications. Made with AISI 304 stainless steel manifolds, powder-coated green, it guarantees strength, durability, and a modern design.
Main Features
- Treatment capacity: 2640 liters/hour
- Water connection: 3/4" M
- UV lamp: 1 x 55 W G13 Philips
- Material: AISI 304 stainless steel with green protective coating
- Lamp life: 8,000 hours
- Electronic ballast: Equipped with LED function indicators for easy monitoring
Technical Specifications
- Dimensions (mm) H x W: 64 x 926
- Maximum operating pressure: 5 bar
- Power supply: 230 V – 50 Hz
- Temperature range: 2 – 40°C
- Lamp sheath: Quartz
- Compliance: Complies with CE regulations
Benefits of Green Coating
The green powder coating not only provides a unique appearance, but also offers advanced protection against ferrous metal contamination. This improves durability and ensures consistent, reliable performance even in particularly demanding environments.
UV-C Efficiency
Water transparency to ultraviolet radiation with a wavelength of 254 nm is an essential parameter for disinfection. Indicatively:
- Demineralized water: Transmittance of 99%
- Filtered water: Transmittance between 90% and 95%
- Filtered wastewater: Transmittance of 60-65%
The S-line Series confirms its position as a high-quality solution, guaranteeing efficiency, ease of management, and an excellent quality/price ratio.
Compliant with Ministerial Decree 174/2004.
For further details, see the related technical documentation.
For proper installation of the UV sterilizer, it is strongly recommended to install:
- a pressure reducer (not included in the kit)
- a check valve (not included in the kit)
- a hydraulic bypass system (not included in the kit)
To protect the quartz tube from clouding and reduce the frequency of maintenance required for its cleaning, it is recommended to install a pre-filtration system with a filtration grade between 20 and 50 μm upstream of the UV sterilizer.
