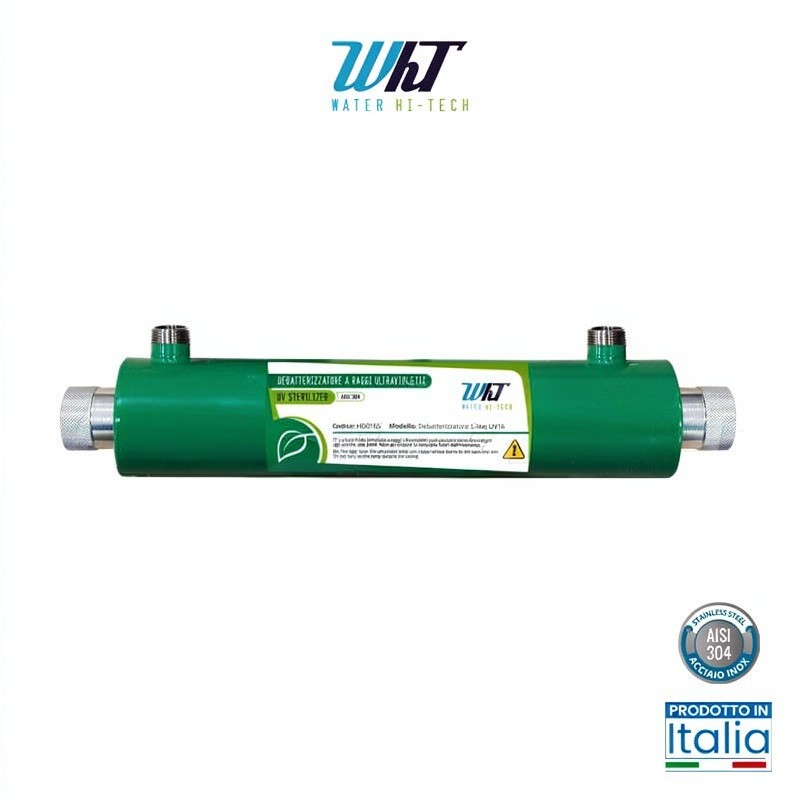

S-line Series UV16 Sterilizer
The S-line Series sterilizer is designed to offer high performance in a compact format, ideal for both domestic and professional applications. Made with AISI 304 stainless steel manifolds, powder-coated green, it combines strength, durability, and a modern design.
Main Features
- Treatment capacity: 590 liters/hour
- Water connection: 1/2" F
- UV lamp: 1x16 W G5 Philips
- Material: AISI 304 stainless steel with green protective coating
- Lamp life: 8,000 hours
- Electronic ballast: Equipped with LED function indicators for easy monitoring
Technical Specifications
- Dimensions (mm) H x W: 64 x 328
- Maximum operating pressure: 5 bar
- Power supply: 230 V – 50 Hz
- Temperature range: 2 – 40°C
- Lamp sheath: Quartz
- Compliance: Complies with CE regulations
Benefits of Green Coating
The green powder coating offers a distinctive appearance and provides superior protection against ferrous metal contamination, improving durability and ensuring reliable performance even in demanding environments.
UV-C Efficiency
Water transparency to ultraviolet radiation with a wavelength of 254 nm is essential for disinfection. Indicatively:
- Demineralized water: 99% transmittance
- Filtered water: 90% to 95% transmittance
- Filtered wastewater: 60-65% transmittance
The S-line Series is the ideal solution for those seeking efficiency, reliability, and ease of management, with an excellent quality/price ratio. Efficient and long-lasting disinfection.
Compliant with Ministerial Decree 174/2004.
For further details, see the related technical documentation.
For proper installation of the UV sterilizer, it is strongly recommended to install:
- a pressure reducer (not included in the kit)
- a check valve (not included in the kit)
- a hydraulic bypass system (not included in the kit)
To protect the quartz tube from clouding and reduce the frequency of maintenance required for its cleaning, it is recommended to install a pre-filtration system with a filtration grade between 20 and 50 μm upstream of the UV sterilizer.
