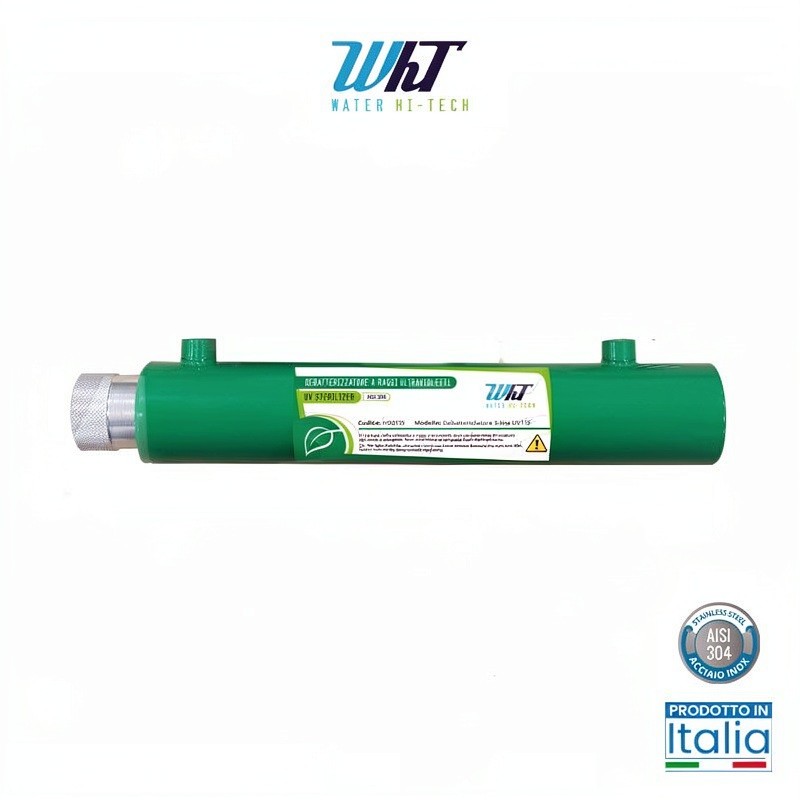

UV Sterilizer Model UV11 S in AISI 304 - 1x11W 290L/h
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Indicative images. Specifications are subject to change without notice - Order processing time: approximately 2-3 working days from advance payment
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
S-line UV11 Series Sterilizer
The S-line Series sterilizer is a compact, high-performance solution, ideal for applications requiring reliable and long-lasting water treatment. Made of AISI 304 stainless steel, it guarantees quality construction and a modern design.
Main Features
- Treatment capacity: 290 liters/hour
- Water connection: 1/4" F
- UV lamp: 1 x 11 W G5 Philips
- Material: AISI 304 stainless steel with green protective coating
- Lamp life: 8,000 hours
- Electronic ballast: Equipped with LED operation indicators for intuitive control
Technical Specifications
- Dimensions (mm) H x W: 50 x 301
- Maximum operating pressure: 5 bar
- Power supply: 230 V – 50 Hz
- Temperature range: 2 – 40°C
- Lamp sheath: Quartz
- Compliance: Complies with CE regulations
Benefits of the Green Coating
The green coating, in addition to protecting against ferrous contamination, improves the visibility and durability of the sterilizer, ensuring consistent performance even in demanding environments.
UV-C Efficiency
Water transparency to UV radiation at 254 nm is crucial for assessing disinfection effectiveness:
- Demineralized water: 99% transmittance
- Filtered water: 90% to 95% transmittance
- Filtered wastewater: 60-65% transmittance
The S-line Series stands out for its efficiency, reliability, and ease of management, making it an excellent choice for those seeking a long-lasting and high-performance disinfection system.
Compliant with Ministerial Decree 174/2004.
For further details, see the related technical documentation.
For proper installation of the UV sterilizer, it is strongly recommended to install:
- a pressure reducer (not included in the kit)
- a check valve (not included in the kit)
- a hydraulic bypass system (not included in the kit)
To protect the quartz tube from clouding and reduce the frequency of maintenance required for its cleaning, it is recommended to install a pre-filtration system with a filtration grade between 20 and 50 μm upstream of the UV sterilizer.
