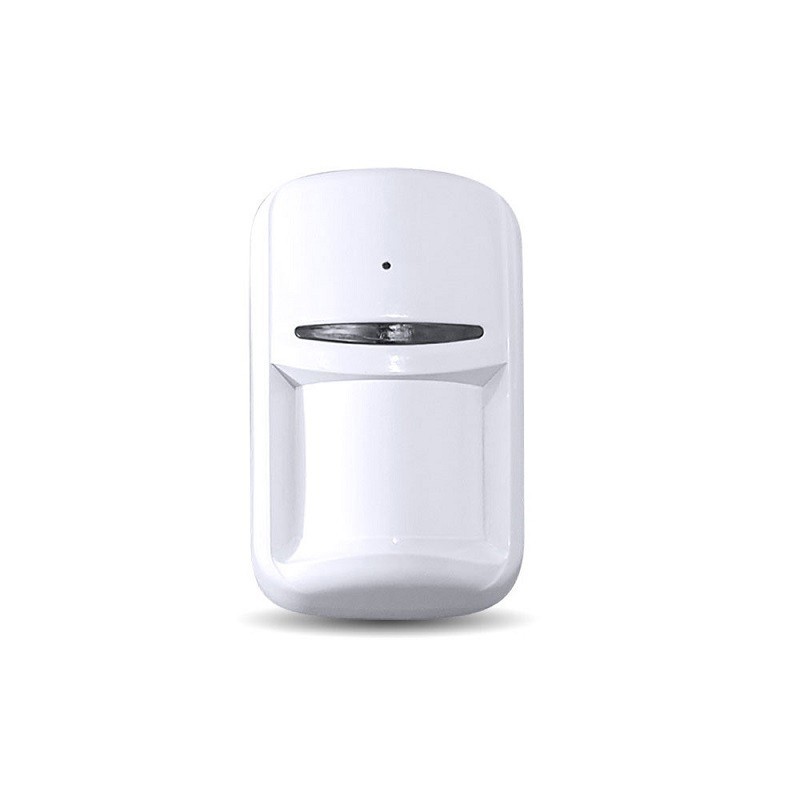

PIR Curtain Sensor + Glass Break Detector U-PROX WUPIRTND


Please Note: Regarding Security Systems, the compatibility of our components is guaranteed exclusively with the relevant Italian control units
PROMOS applied during CheckOut after choosing Courier and Payment Method
Italian destinations:

- from € 300 spent free shipping
- possibility of tax deduction

Other European (EU) destinations:
- from € 300 spent, extra discount 5% on the order

Furthermore, for all destinations (Italy and EU):
- extra discount 2% on the order paying by bankwire
- loyalty program: 1 point for every € spent
We ship the product to Italy and UE (Member Countries)
For the price of the product click on "ask a quote" and then on "open list" to fill out the request form with your details

  Security policy

We use the SSL standard to ensure security during payment

  Delivery policy

Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)

  Return policy

Purchases can be returned within 14 days (as per terms and conditions of sale)

WUPIRTND passive infrared sensor combined with a glass break sensor. The device is equipped with a PIR sensor, vertical barrier lens with a narrow horizontal viewing angle and a microphone.

Device designed to control the perimeter inside the room, to protect glass structures, windows, doors, garage doors, etc.

Protection against false alarms

Avoid false alarms with a selective algorithm that analyzes acoustic data and ignores sounds not compatible with breaking glass.

Technical features

Radio frequency: ISM band wireless interface, multi-speed with more channels

ITU Region 1 (EU, UA): 868.0 to 868.6 MHz, 100 kHz band, 20 mW max, up to 4800 m (line-of-sight)

Communication: secure two-way, sabotage detection, key - 256 bit

Motion detection: maximum distance: 10 m optical noise immunity: > 6500 Lux

Absorption: standby 10 µA - transmission 20 mA

Power supply: 3V, CR123A (included)

Electrostatic discharge resistance: 8kV

Immunity to electromagnetic fields. radiated: 5 V/m

Glass break detector: maximum distance 8 m - glass thickness 2-8 mm

Operating temperature: -10°C to +55°C

White color

Dimensions: with wall bracket: 90 x 60 x 42 mm - with corner bracket: 90 x 60 x 49 mm

Weight: 150g
