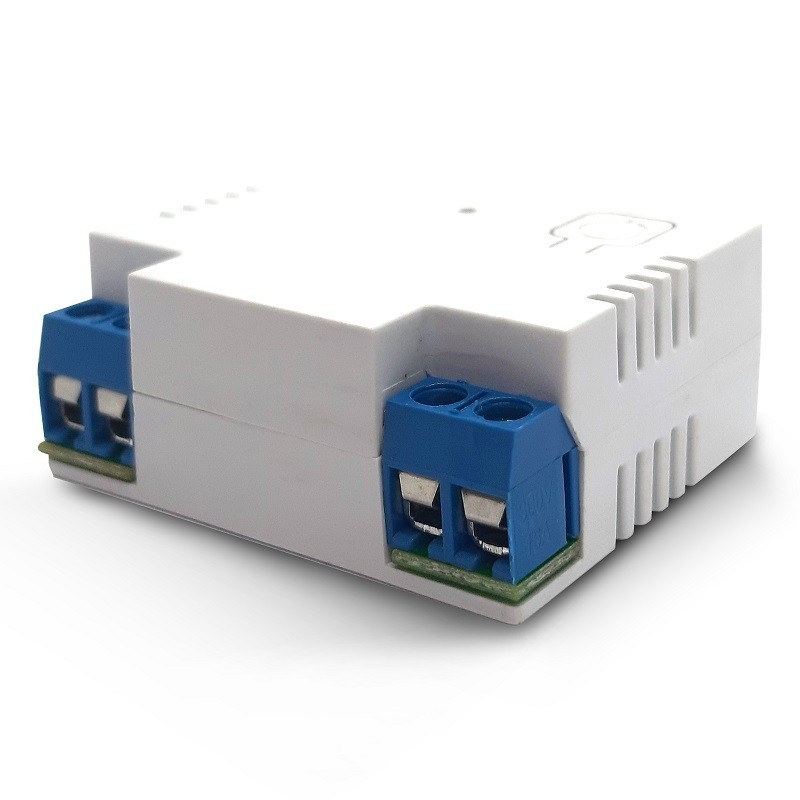

U-PROX WURLCC 12Vdc 1A relay OUT module
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
WURLCC is a low current wireless relay designed to control appliances remotely.
The device is connected to the control unit and is configured with the U-Prox Installer mobile application.
The relay switches the NO contact in response to a configurable event or condition and can be used to automate equipment external to the U-Prox system.
• Relay controlled with 12V power supply
• Operations > 200,000
• Powered at 10.8V ... 13.2V DC
• Maximum delay 5 seconds
• Multiple channels for redundancy
• Compact dimensions
• Operating temperature from -10 °C to + 55 °C
Technical features
Operations: > 200,000
Pulse duration: adjustable from 0.1 - 250 seconds
Radio frequency: ISM band wireless interface, multi-speed with more channels
ITU Region 1 (EU, UA): 868.0 to 868.6 MHz, 100 kHz band, 20 mW max, up to 4800 m (line-of-sight)
Communication: secure two-way, sabotage detection, key - 256 bit
Output: COM NO, 10A @ 230V AC or 30V DC max
Power: 10.8 ... 13.2V DC
Delay: max 5 seconds
Operating temperature: -10°C to +55°C
White color
Dimensions: 44 x 36 x 18mm
Weight: 55g
PLEASE NOTE: PRODUCT EXCLUSIVELY COMPATIBLE WITH ITALIAN CENTRAL UNITS
