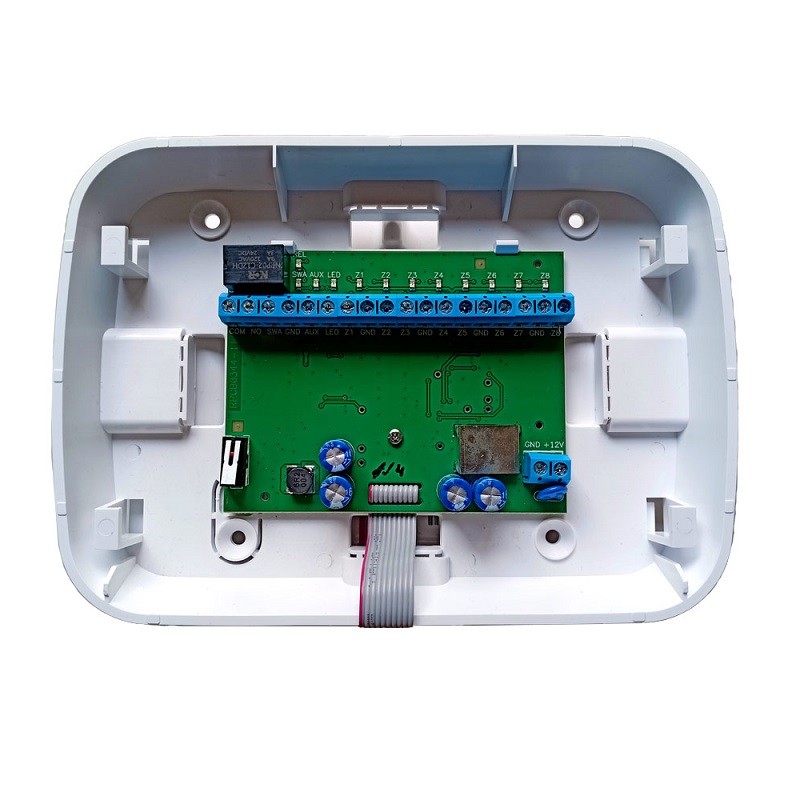

Connection board for 8 U-PROX WUCBL wired sensors
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
WUCBL is a wireless module designed to connect wired equipment (detectors, IR barriers, gas detectors, wired sirens, etc.) to the wireless control panel.
It has a 12V power output and internal backup batteries.
It is installed indoors.
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
• With 2x2600 mAh lithium buffer battery
• 8 EOL zones, NC
• AUX 200mA power output
• SWA 200mA power output
• LED output
• Relay output
• 12V power supply
• White color
Technical features
Inputs: 8 (Z1 ... Z8)
Outputs: 1 relay (NO C)
LEDs: +3V
ITU Region 1 (EU, UA): 868.0 to 868.6 MHz, 100 kHz band, 20 mW max, up to 4800 m (line-of-sight)
Communication: secure two-way, sabotage detection, key - 256 bit
Outputs: 2 outputs, AUX and SWA (switchable output), protected by resettable fuse, 200mA @12V
Battery Backup: Two 2500mAh batteries, up to 10 hours (8 wired detectors, 15mA each)
Power supply: 12V, 0.7A
Operating temperature: -0°C to +45°C
White color
Dimensions: 167 x 120 x 38mm
Weight: 640g
PLEASE NOTE: PRODUCT EXCLUSIVELY COMPATIBLE WITH ITALIAN CENTRAL UNITS
