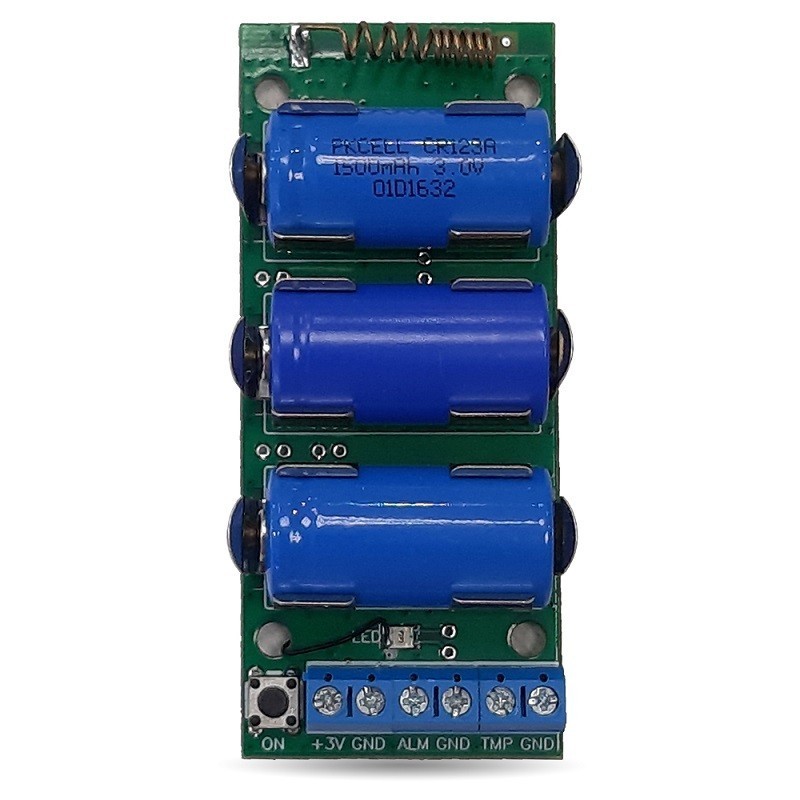

Universal Transmitter 2 IN + 1 OUT 3V U-PROX WUTXUNI
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
WUTXUNI is a 2-input wireless module, designed to connect wired equipment (detectors, IR barriers, etc.) to the wireless control panel.
It has 3V controlled power output and can be integrated into detectors.
The device is connected to the control unit and is configured with the U-Prox Installer mobile application.
High battery capacity for extended life even with connected sensors
• Two-way radio transmitter
• Internal antenna with range up to 4800 m in open field
• 2 alarm inputs + 1 for tamper
• Output voltage 3.3V
• Powered by 3 x 3V CR123A batteries
• Compatibility with third party detectors with hardwired alarm output
• The power output for the wired sensor can be set to activate only when the system is armed to save further battery energy
Technical features
Inputs: 2- ALM (Alarm) TMP (Tamper switch)
Radio frequency: ISM band wireless interface, multi-speed with more channels
ITU Region 1 (EU, UA): 868.0 to 868.6 MHz, 100 kHz band, 20 mW max, up to 4800 m (line-of-sight)
Communication: secure two-way, sabotage detection, key - 256 bit
Battery: 3 CR123A batteries, 1500mAh. Up to 5 years (2 wired detectors, 24 µA each in standby)
Output voltage/consumption: 3V, 50mA max
Operating temperature: -10°C to +55°C
Dimensions: 90 x 39 x 20mm
Weight: 340g
PLEASE NOTE: PRODUCT EXCLUSIVELY COMPATIBLE WITH ITALIAN CENTRAL UNITS
