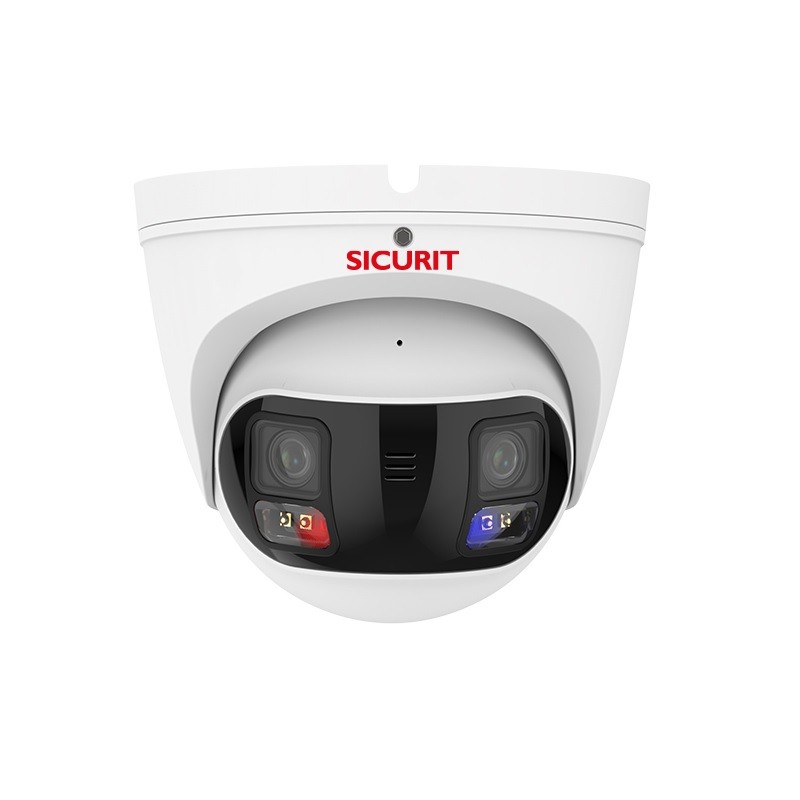

AI PROGRESS TURRET IP 8MP 180° 2x2.8MM Camera - VIP4KTU180FA
THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
AI PROGRESS TURRET IP 8MP 180° 2x2.8MM Camera, Day&Night, Microphone/Speaker, IR Led 30 m White light, 15m red blue light, H.265+/H.265/H.264+/H.264, Intelligent Video Analysis (Face Recognition, Detection: people and vehicles, Perimeter intrusion, Line crossing, Cross counting, Abandoned object, Heat map, Crowd density, Queue length, License plate, Unusual sounds)
TECHNICAL CHARACTERISTICS
Camera
Sensor 1/2.7" Progressive CMOS *2
Sensitivity Color 0.001lux @ F1.0 (AGC ON); B/W 0 lux @ IR ON
Shutter speed 1/5s to 1/20000s
Slow shutter Yes
Day & Night IR cut filter
Lens type 2.8mm FIXED
Resolution 8MP 5120*1440
Aperture ratio F 1.0
Angular field of view Horizontal: 180°
Illuminator
Light range supplement IR distance: up to 30m/Warm light: up to 15m
Type of supplementary light IR and warm light
Video
Main stream 60/50Hz@20fps; 5120x1440; 4608x1296; 4096x1152; 3840x1080; 3072x864
Secondary 60/50Hz@20fps;2048x576; 1536x432;1024x288
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265+/H.265/H.264+/H.264/MJPEG
Video Bitrate 8kbps to 16384kbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Audio Compression G.711a/G.711u
Network
Protocols IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
TCP/IP, UDP, DHCP, PPPoE,
Onvif API (Profile S, Profile G, Profile T), HTTP API
Simultaneous Viewing from vivo Up to 15 channels
User/Guest 7 users
Security Password protection, complicated password, HTTPS encryption,
IP address filter, control timeout settings
VMS Client
Web browser IE11, Safari V11+, Firefox V.52+, Google Chrome V.57+
Day / night Day, Night, Auto, Schedule
Image enhancement BLC, HLC, 3D DNR
Wide Dynamic Range DWDR
Image settings Saturation, brightness, contrast, sharpness, hue and white balance adjustable via client software or web browser
Privacy Masking Off/On (4 zones)
Interface
Ethernet interface 1 RJ45 10M/100M self-adaptive Ethernet port
Onboard storage Built-in memory card slot, support microSD / SDHC / SDXC card, up to 256GB
Alarm Built-in red and blue flashing lights
Audio 1 Built-in microphone/1 speaker
AI intelligent functions
Basic event Motion detection
Deep learning function
Face recognition, pedestrian and vehicle detection, line crossing, object detection, cross counting, heat map,
crowd density, queue length, license plate recognition, intrusion,
region entry, region exit
Environmental
Operating temperature/humidity -30°C ~ +60°C / ≤ 90%
Protection IP67
Electrical
Input voltage/current DC 12V/PoE
Mechanical
Color/Material White / metal
Dimensions and weight Ø 136 mm × 127 mm (Ø 5.35" × 5")
5013
