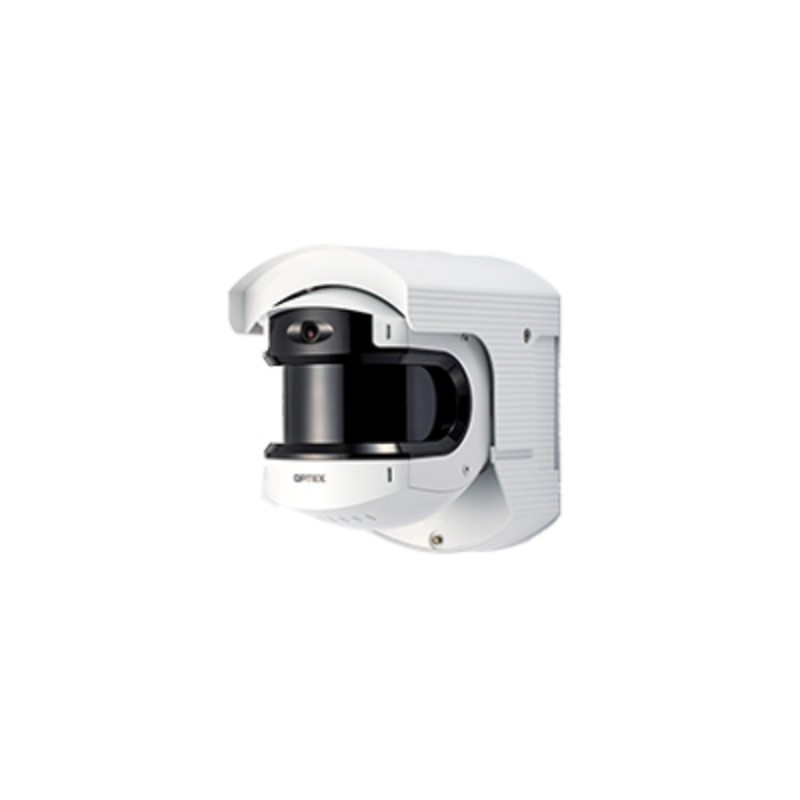

Optex REDSCAN Pro LIDAR sensor 30x60 m - RLS3060-V

REDSCAN Pro series compliant with ONVIF profile S

RLS-3060V is the LIDAR sensor that offers extremely accurate detection of intruders and moving objects within a radius of 30m x 60m without any discontinuity and maintaining the same detection resolution (near and far).

Featuring the most advanced OPTEX technology, it offers excellent detection performance that is not affected by variable lighting, temperature or environmental changes. The best solution for high security sites.

PoE+ LiDAR sensor, 190 degrees and 50m x 100m, ONVIF S profile compliant, high security outdoor and indoor

Some Features:

- Analysis that identifies the size, distance and speed of the object

- Customizable vertical or horizontal detection, 30m x 60m

- Integrated video camera, for adjustment and review of alarm events

- Up to 8 independent detection zones

- RLS-3060V offers 190 degree, 30 x 60m detection, allowing you to protect large areas with a single sensor. The detection area can be divided into up to 8 independent zones and for each of them it is possible to customize the target size, sensitivity and alarm output. It offers great flexibility in adapting settings depending on the location of the zones and the level of danger.

For example, one detection zone can be set to detect people, another to detect vehicles, or as a pre-alarm and another as an immediate security alarm.

The detection range and versatility of the REDSCAN Pro allows you to achieve what is generally achieved by multiple sensors.

The integrated video camera allows you to record alarm events on the device and save photos and videos both before and after the event. They act as further support in checking what triggered the alarm and possibly making the necessary changes to the settings.

Intelligent and weather-resistant device

Thanks to integrated analytics, REDSCAN Pro can analyze the size, speed and distance of moving objects, providing precise detection by tracking X and Y coordinates.

The advantage of LIDAR technology is that the detection performance is stable at all times and is not affected by variations in light or temperature. The RLS-3060V features an environmental resistance feature to reduce false alarms related to harsh conditions, such as fog or snow.

An Auto Area Adjustment feature allows Redscan Pro to constantly adjust the detection area to take into account changes occurring on the ground. E.g. the accumulation of snow or leaves, etc.

The sensor can operate from -20 to +60 degrees and, using the heated lens, can extend its operating temperature down to -40 degrees.

Connectivity and interoperability

The RLS-3060V LiDAR is an ONVIF Profile S compliant sensor, which allows it to send alarm outputs via the ONVIF protocol to any compliant network video system or IP network devices.

The video transmission of the assistance camera could also be provided to the Video Management Software platform via the ONVIF RTSP protocol. To ensure secure network communication, the REDSCAN Pro is compatible with HTTPS SNMPv3 and IEEE802.1X protocols.
