Outdoor OPTEX Double IR Detector - IRP400EXTAM12V
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)

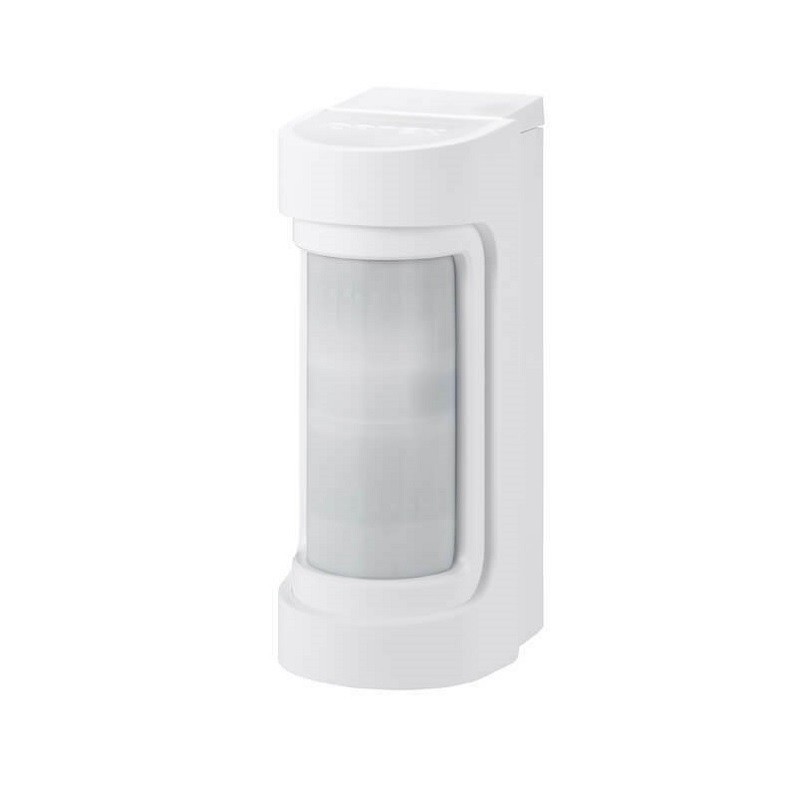

OPTEX PASSIVE INFRARED - OUTDOOR INSTALLATION
Intelligent dual technology with 12m range for the harshest environments
Active IR anti-masking
Easy setting, automatic pass test mode
Versatile design - selection of cases and front covers
Detection mode: Passive infrared
PIR detector coverage: Amplitude 12 m - 90° / 16 zones
PIR distance limit: From 2.5 m to 12 m (5 levels)
Detectable Speed: 0.3 to 2.0 m/s
Sensitivity: 2.0°C @ at 0.6 m / s
Supply voltage: From 9.5 to 18Vdc.
Current consumption (except motion test): 24mA (max.) @ 12Vdc
Alarm time: 2.0±0.1s.
Heating time: Approx. 60 s. (LED flashes)
Alarm output: Selectable N.C. (normally closed) / N.A. (normally open) 0.1A @ 28VDC (max.)
Fault output: N.C. (normally closed) 0.1A @ 28VDC(max)
Tamper exit: Opens when the front cover or the main appliance or the fixing base is removed.
LED Indicator: Red LED; 1. Heating 2. Alarm 3. Masking detection - DIP switch ON or motion test - DIP switch ON or motion test
Operating temperature: From -30°C to +60°C
Ambient humidity: 95% max
Degree of protection: IP55
Fixing positions: Wall, pole (outdoor / indoor)
Fixing height: From 0.80 m to 1.20 m
Weight: 400 g
Accessories: 2 x Screws (4x20mm), 3 x Masking stickers
