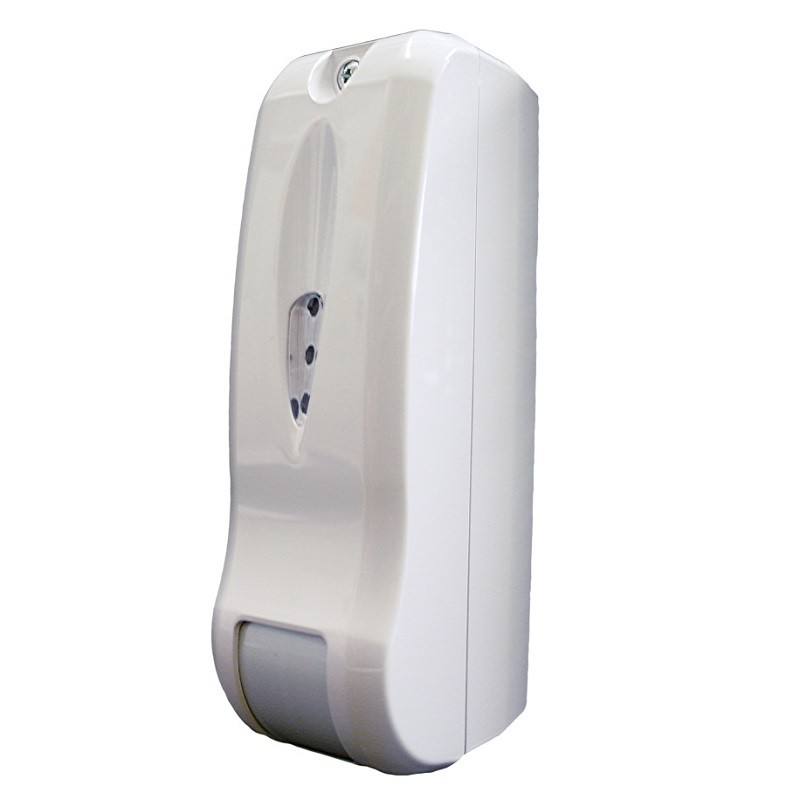

Double technology IP55 Curtain + MW radio PowerG - WPM800EXTDE

3298
Quantity

Please Note: Regarding Security Systems, the compatibility of our components is guaranteed exclusively with the relevant Italian control units
PROMOS applied during CheckOut after choosing Courier and Payment Method
Italian destinations:

- from € 300 spent free shipping
- possibility of tax deduction

Other European (EU) destinations:
- from € 300 spent, extra discount 5% on the order

Furthermore, for all destinations (Italy and EU):
- extra discount 2% on the order paying by bankwire
- loyalty program: 1 point for every € spent
For this product delivery is also available in Europe (UE Member Countries)
For the price of the product click on "ask a quote" and then on "open list" to fill out the request form with your details

Categories:
  Security policy

We use the SSL standard to ensure security during payment

  Delivery policy

Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)

  Return policy

Purchases can be returned within 14 days (as per terms and conditions of sale)

Double curtain technology for outdoor range 12 m. 12Vdc power supply - pyroelectric + microwave.

- Wall installation

- Coverage: 12 meters, 7.5 ° angle

- Microwave frequency: 24.125 GHz

- Alarm processing technology: DSP (Digital Signal Processing)

- Detection distance: From 0.30 to 12 meters

- Zones: Single curtain detection (7.5 ° angle)

- Horizontal coverage: IR = 7.5 ° and MW = 32 °

- Vertical coverage: IR = 90 ° and MW = 80 °

- Tent width at 2 and 10 meters: 25 cm and 130 cm

- Installation height: 2.1 m on the wall or inside the frame compartment

- Selectable detection type: AND - OR

- Working voltage: 10 -15 Vdc

- Maximum consumption: 25 mA

- Minimum consumption: 11 mA

- Alarm contact: It switches for 5 sec.

- Tamper contact: Yes, anti-opening microswitch

- Sensitivity adjustment: By trimmer

- Microwave adjustment: By trimmer

- Led signaling: Active / disabled through microswitches

- Alarm memory: Yes

- RFI / EMI immunity: Up to 2 GHz

- Signaling LED: MW = yellow; PIR = red; Alarm = blue

- Operating temperature: Self-compensation

- Size: 37 x 125 x 40mm

PLEASE NOTE: PRODUCT EXCLUSIVELY COMPATIBLE WITH ITALIAN CENTRAL UNITS
