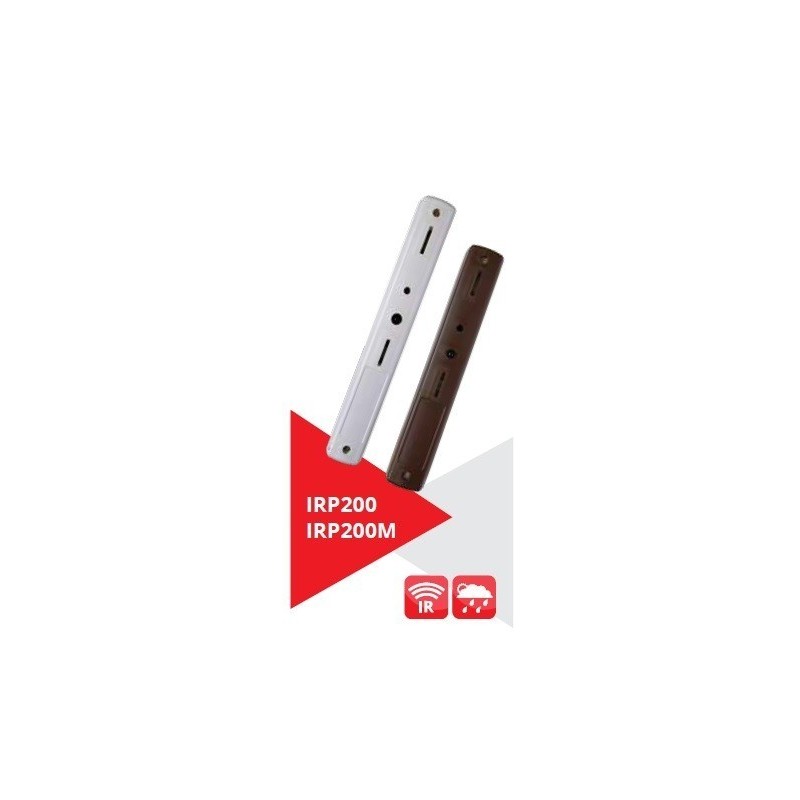

Double Brown ir passive infrared curtain sensor for outdoor - IRP200M


Please Note: Regarding Security Systems, the compatibility of our components is guaranteed exclusively with the relevant Italian control units
PROMOS applied during CheckOut after choosing Courier and Payment Method
Italian destinations:

- from € 300 spent free shipping
- possibility of tax deduction

Other European (EU) destinations:
- from € 300 spent, extra discount 5% on the order

Furthermore, for all destinations (Italy and EU):
- extra discount 2% on the order paying by bankwire
- loyalty program: 1 point for every € spent
We ship the product to Italy and UE (Member Countries)
For the price of the product click on "ask a quote" and then on "open list" to fill out the request form with your details

  Security policy

We use the SSL standard to ensure security during payment

  Delivery policy

Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)

  Return policy

Purchases can be returned within 14 days (as per terms and conditions of sale)

Double passive infrared curtain effect. It can be mounted both indoors and outdoors and offers curtain effect protection for windows and doors, with an alarm that can be selected in AND / OR.


- Sensor type: Double passive infrared detector

- Cover: A curtain max h. 5.0 x 1.20 m

- Power supply: 11.5 to 15.5 Vdc

- Absorption: 5mA in standby - 10mA in alarm

- Alarm relay: N.C. 1A @ 30Vcc

- Pulse counter: 1 or 2 pulses in 2.5 seconds

- Detection areas: 4

- Anti-opening tamper: N.C. contact

- Operating temperature: -20 ° C to + 50 ° C.

- Degree of protection: IP54

- Dimensions (b x h x d): 200 x 40 x 30 mm.

- Material: ABS in white or brown color
