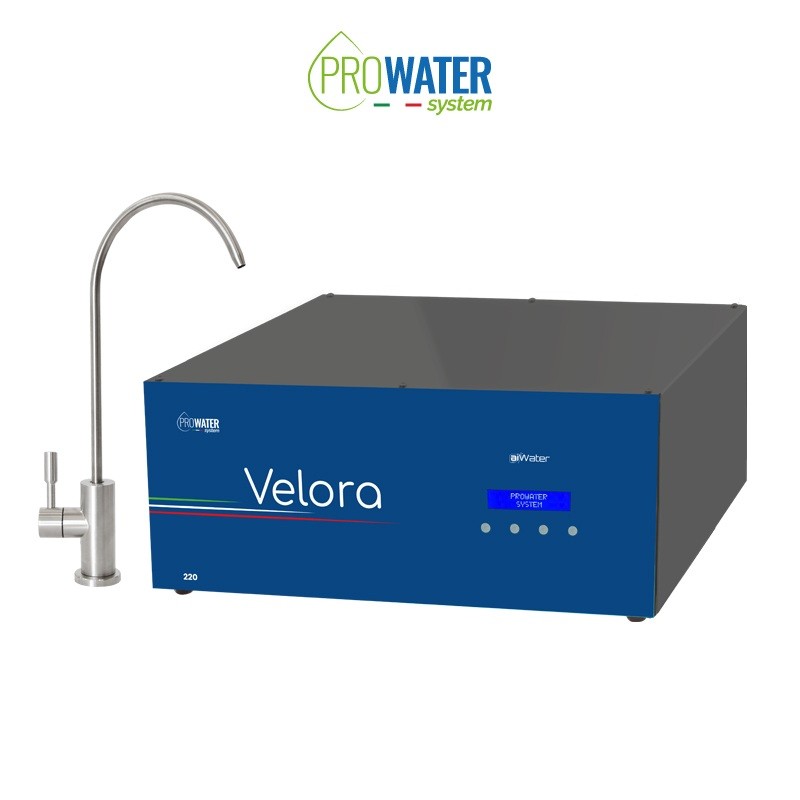

VELORA HF 220L/H WiFi Under-Sink Reverse Osmosis Water Purifier Made in Italy

The VELORA HF 220 WI-FI represents the evolution of water treatment for high-flow residential systems, producing up to 220 liters/hour.

Thanks to Wi-Fi connectivity, this model allows for remote system control, advanced consumption monitoring, and more advanced maintenance management via a dedicated web app.

The backlit LCD display provides a clear view of operating status, while the high-performance ventilated electric motor with rotary pump ensures continuity and high delivery capacity.

The configuration with four 200 GPD reverse osmosis membranes allows for high production and contributes to achieving a 1:1 recovery ratio between product water and waste water.

External pre-filtration is included and consists of one 10" 5 µm PP cartridge and one 10" Carbon Block cartridge, connected via an external double bracket.

Construction details and equipment

- Design: Plexiglass front. A distinctive element that enhances the system's design and enhances its aesthetic impact.

- Structure: Durable body. Elegant, high-resistance paint finish, designed for a compact and professional product.

- Control: LCD display with interface to view system status, filters, and faults.

- WiFi: Remote management. Remote control, firmware updates, predictive maintenance, and proactive support.

- Pre-filtration: Double external bracket with one 10" 5 µm PP cartridge and one 10" Carbon Block cartridge.

- Reverse osmosis: Four 200 GPD reverse osmosis membranes to ensure high production and operational continuity.

- Ventilated electric motor: to ensure greater performance and reliability.

- Brass rotary pump: model with bearing and dual circuit.

- Equipment: Complete kit. Elegant AISI 304 faucet, John Guest and/or DMfit fittings, water connection, drain, and piping.

Remote control: Wi-Fi for more advanced system management.

Wi-Fi connectivity allows you to manage the system via a dedicated web app, checking its operating status and key operating parameters.

The system monitors operating pressure, water consumption, filter cartridge efficiency, and membrane status.

Remote firmware updates, predictive maintenance, and proactive support make the system easier to monitor and maintain over time.

High flow rate: Designed for those who require higher production without sacrificing compactness.

VELORA HF 220 is designed to offer superior production while maintaining a compact structure that is easily integrated into domestic environments.

The ventilated electric motor with rotary pump can handle a flow rate of up to 220 L/h, ensuring continuity and high performance.

External pre-filtration on a double bracket, with a 10" 5 µm PP cartridge and a 10" Carbon Block cartridge, improves system protection and prepares the water for osmosis treatment.

High flow rate filtration: How does it work?

The water passes through the included external pre-filtration system, consisting of one 10" 5 µm PP cartridge and one 10" Carbon Block cartridge, both connected via an external double bracket.

It then passes through four 200 GPD reverse osmosis membranes, producing refined water with high production.

The needle valve mixing system allows for precise adjustment of the treated water, while the LCD display improves system monitoring and maintenance.

Electrical and dimensional data

- Power supply: 230V AC

- Power consumption: 300 W

- Weight: 16 kg

- System dimensions: L 430 x H 180 x D 360 mm

- Box dimensions: 49 x 21 x H 49 cm

Certifications: Domestic equipment for the treatment of drinking water. The system requires routine maintenance. All components comply with Ministerial Decree 174/2004. Complies with Ministerial Decree 174/2004. 25/2012 and CE certification. For further details, see the related technical documentation.

Pre-filtration included: double external bracket complete with one 10" 5 µm PP cartridge and one 10" Carbon Block cartridge.

Membrane configuration: system with four 200 GPD reverse osmosis membranes and a 1:1 recovery ratio between product water and waste water.

WARNING: The water inlet pressure must be between 2 and 3.5 bar. Install a pressure reducer and a non-return valve upstream of the system. Components not included.
