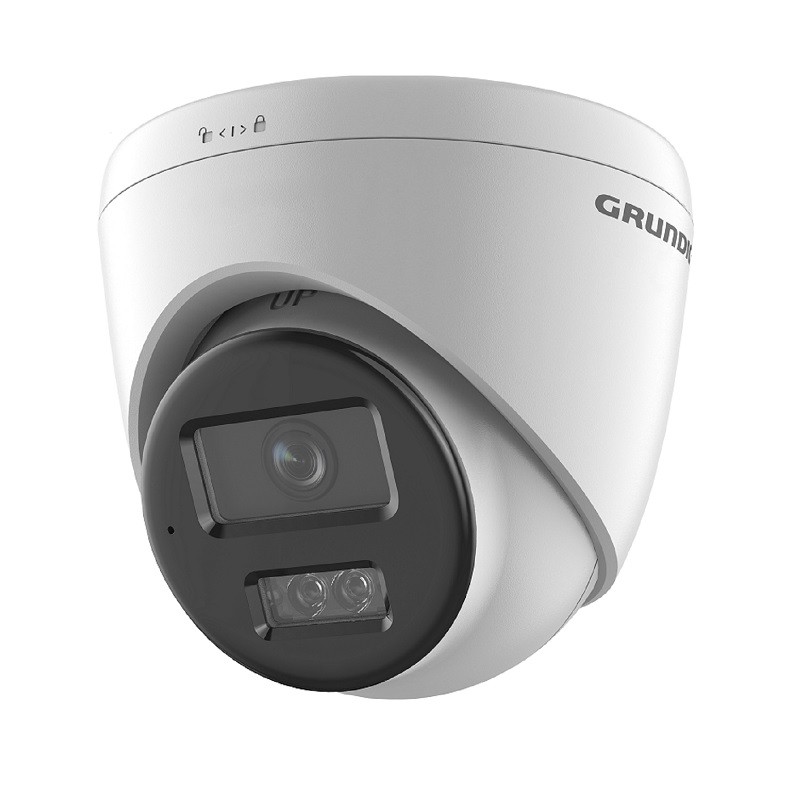

GRUNDIG 6 MP Turret IP Camera Essential Line GD-CI-AC6614E

Camera IP 6 Megapixel CMOS, Colour/B&W Camera, Lens 2.8 mm, H.265/H.265+, H.264/H.264+ & MJPEG, 3 Axis Gimbal for wall and ceiling mount, Integrated LED IR up to 30m, Dual Power PoE/DC12V

Datasheet

- CAMERA

Image Sensor: 1/2.4" progressive Scan CMOS

Resolution (MP): 6 MP

Video Resolution: 3200 x 1800

Sensitivity Colour: 0.005 Lux @ F1.6 (AGC ON)

Sensitivity B/W: 0 Lux LED IR on

Shutter Speed: 1/3 ~ 1/100,000 s (Automated Electronic Shutter)

Slow Shutter: Support

- LENS

Lens Focal Length: 2.8 mm

Iris F-Number: F1.6

Lens Mount: M12

Field of View: 105° (horizontal), 55° (vertical), 127° (diagonal)

- ILLUMINATOR

Max. IR Distance: Up to 30 m

White Light Distance: Up to 30 m

Wavelength: 850 nm

White LED: yes

- VIDEO

Col/B&W: On, Off, Auto, IR-cut filter removable (ICR)

Wide Dynamic Range: 120 dB

Image Enhancement: BLC, 3D DNR, HLC

Image Settings: Rotate mode, Saturation, Brightness, Contrast, Sharpness and white balance adjustable by client software or web browser

Day/Night Switch: Support auto, scheduled, day, night

Privacy zones: 4 zones, rectangle

- AUDIO

Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate: 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Environment Noise Filtering: yes

- GENERAL

DRI Range: Detection Range: 76 m Recognition Range: 15 m Identification Range: 7 m

- FRAME RATE

Main Stream: 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub- Stream: 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

- NETWORK

Users: Up to 32 users, 3 levels: Administrator, Operator and User

Number of Clients: Up to 6 simultaneously

Functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, Ip-address filter

Video Compression: Main Stream: H.264, H.264+, H.265, H.265+ Sub-Stream: H.264, H.265, MJPEG

Region of Interest: Support 1 fixed region

H.264 code profile: Baseline Profile / Main Profile / High Profile

Bit Rate: 32Kbps ~ 16Mbps, adjustable

SD Memory: Micro SD/SDHC/SDXC card slot with ANR (up to 256G), NAS (Support NFS, SMB/CIFS)

Web Browser: Plug-in required live view: IE10/IE11 Non Plug-in live view: Chrome 57+, Mozilla Firefox 52+ Local Service: Chrome 57+, Firefox 52+

Network Protocol: TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, RTP, RTSP, NTP, SMTP, QoS, UDP, IPv6, IGMP

Cyber Security: 3 levels of user management: admin, operator, user, AES Encryption for Password Protection, Complicated Password, HTTPS (SSL) Login Authentication, 802.1X authentication (EAP-MD5), Watermark, IP Adress Filter, WSSE and digest authentication for ONVIF, TLS 1.0, TLS 1.1, Brute Force Delay Protection, Secure Boot by software check

- I/O INTERFACE

Audio Inputs: Built in Microphone

Network Interface: 1x 10, 100 Base T, TX PoE (RJ-45)

- INTELLIGENT FUNCTIONS

Intelligent Video Analytics: MD, VTD

Intrusion Detection: Motion detection with human and vehicle detection

Event Source: Video tampering, network disconnected, IP address conflicted

- APPROVALS

Protection Rating: IP67 (IEC 60529-2013)

Regulation: CE, RoHS Compliant

Standard: ONVIF (Profile S, Profile G, Profile T), SDK/API

- ENVIRONMENTAL

Operating Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity: Less than 95%, non condensing

- ELECTRICAL

Supply Voltage: 12 VDC, PoE (IEEE 802.3af)

Power Consumption: Max. 6.5 W

- MECHANICAL

Mount: Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°, 3-Axis Adjustment

Dimensions: Ø 110 x 89 mm (Ø 4.32 × 3.5 inch)

Weight: 380 g (0.84 lb)

- PACKAGING

Package Dimensions: 150 x 150 x 141 mm (5.9 x 5.9 x 5.6 inch)

Package Weight: 550 g (1.2 lbs)

Packaging Unit: 27

Bulk Package Dimensions: 467 x 467 x 446 mm (18.4 x 18.4 x 17.6 inch)

Bulk Package Weight: 16500 g (36.4 lbs)
