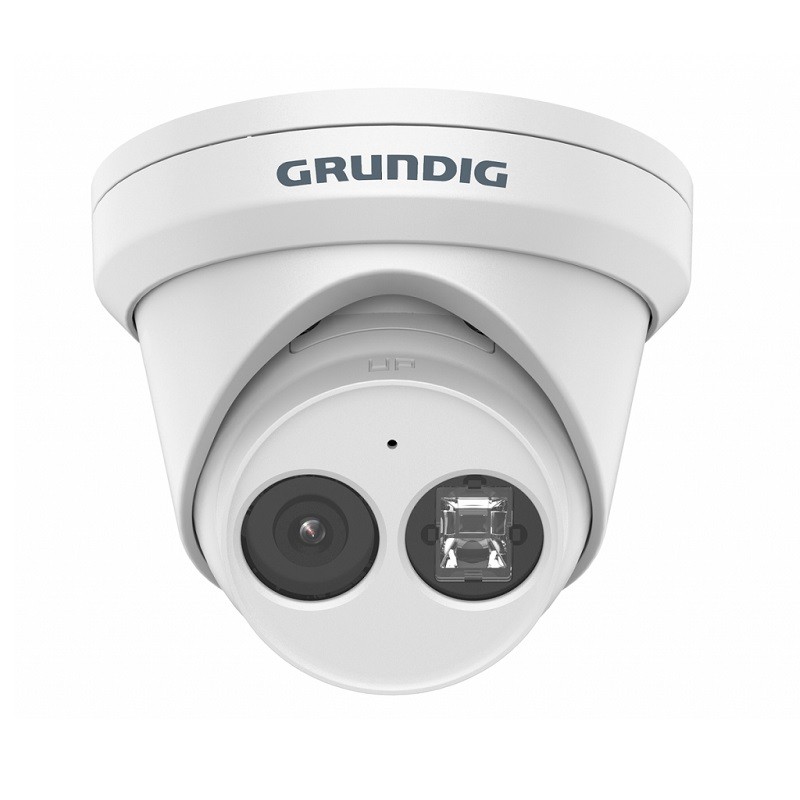

GRUNDIG 8 MP 4K EyeBall IP Camera Professional Line GD-CI-AP8617E

8 Megapixel 4K EyeBall IP camera - Wide angle lens with 2.8 mm fixed focal length - 30 m IR range - Object classification using deep learning algorithms - 3D dynamic noise reduction (3D DNR) & 120 DB WDR

TECHNICAL FEATURES

Camera

Sensor: 1/2.8" progressive scan CMOS

Video Resolution: 3840 × 2160

Color Sensitivity: 0.005 Lux @ F1.6 (AGC ON)

Sensitivity White/Black: 0 Lux IR LED on

Shutter Speed: 1/3 ~ 1/100, 000 sec

Slow Shutter: Supported

Goals

Focal length: 2.8 mm

Optics mount: M12

Field of view: 107° (horizontal), 57° (vertical), 128° (diagonal)

Illuminator

IR LED range: Up to 30 m

wavelength: 850 nm

Video

Col/B : On, Off, auto, IR-cut filter removable (ICR)

Wide Dynamic Range: 120dB

Image Enhancement: BLC, 3D DNR, HLC

 Image settings: Rotation mode saturation, brightness, contrast, sharpness Adjustable with

client software or web browser

Day/Night Switch: Support auto, scheduled, day, night

Audio

Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio bit rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps

(AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Ambient noise filter: Yes

Frame Rate

1. Video stream: 50Hz: 20ips (3840×2160)

 25 ips (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60Hz: 20ips (3840×2160)

 30 ips (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

2. Video stream: 50Hz: 25ips (640×480, 640x360)

60 Hz: 30 ips (640 × 480, 640 x 360)

3. Video Stream: 50Hz: 10ips (1920x1080, 1280x720, 640x480, 640x360)

60 Hz: 10 ips (1920 x 1080, 1280 x 720, 640 × 480, 640 × 360)

* 3rd stream supported with certain settings

Net

Users: 3 levels: Administrator, Operator, User

Number of Customers: Up to 32 simultaneously

Functions: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy

masquerade, watermark, IP address filter

Video Compression: Main Stream:H.264, H.264+, H.265, H.265+

Sub-Stream: H.264, H.265, MJPEG

Third Stream: H.264, H.265

Region of Interest: 1 fixed region for main stream with sub-streamNet

H.264 Code Profile: Baseline Profile / Main Profile / High Profile

Bit rate: 32Kbps ~ 16Mbps

Scalable Video Coding (SVC): Supported

SD Storage: Micro SD/SDHC/SDXC card slot with ANR (up to 256G), NAS (NFS, SMB/CIFS)

Network Protocol : TCP/IP,IPv4, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP,

IGMP, 802.1X, QoS, IPv6, Bonjour, UDP, PPPoE, SNMP

Cyber ​​security: 3 levels of user management: administrator, operator, user, AES encryption for

password protection, complicated password, HTTPS (SSL) login authentication,

basic and digest authentication for HTTP/HTTPS, 802.1X authentication, (EAP-LEAP),

802.1X authentication (EAP-TLS), 802.1X authentication (EAP-MD5), watermarking, IP address filtering,

WSSE and digest authentication for ONVIF, audit timeout settings, log

security audit, SNMP V2, SNMP V3, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.2 with suite of

Updated encryption that includes AES 256 encryption.,Protection against data lag

brute force, Signed firmware, Secure boot via hardware control

Connections

Audio Input\\Output: Built-in microphone

Network interfaces: 1x 10, 100 Base T, TX PoE+ (RJ-45)

Intelligent functions

Deep learning analytics: Line crossing detection, intrusion detection, target classification

humans and vehicles

Motion Detection: Off, ON (normal), Expert Mode: 8 user-defined rectangular zones, according to

plan

Intrusion Detection : Enter with loiter in a predefined virtual region

Line crossing: Crosses a predefined virtual line

Face recognition: The human face is recognized in the image and can trigger an event

Anti-sabotage protection: Scene change with defocus

Event Source: Video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal

login, motion detection

Event Action: Recording: Pre-event, post-event memory card and/or network storage.

Photo upload: FTP, HTTP and NAS. Enable email notification: HTTP, ISAPI. Audio alarm, alarm

white light, alarm output and notification to C-WERK VMS. The events depend on the settings of the

plan

Approvals

Protection Degree: IP67 (IEC 60529-2013)

Regulations: CE, EAC, FCC, RoHS Compliant

Standards: ONVIF (Profile S, Profile G), ISAPI, SDK, Ehome

Environmental

Operating temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity: Less than 95%, non-condensing

Electric

Power: 12 VDC, PoE (IEEE 802.3af)

Power absorption: Max. 7.5 W

Mechanical

Mounting: Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°, 3-Axis Adjustment

Dimensions: Ø 127.3 x 95.9mm (Ø5 × 3.8 inch)

Weight: 600 g (1.32 lb)

Packaging

Package Dimensions: 150 x 150 x 141 mm (5.9 x 5.9 x 5.6 inch)

Package Weight: 900 g (2 lbs)

Packing units: 27

Bulk package dimensions: 467 x 467 x 446 mm (18.4 x 18.4 x 17.6 inches)

Bulk package weight: 24800 g (54.7 lbs)
