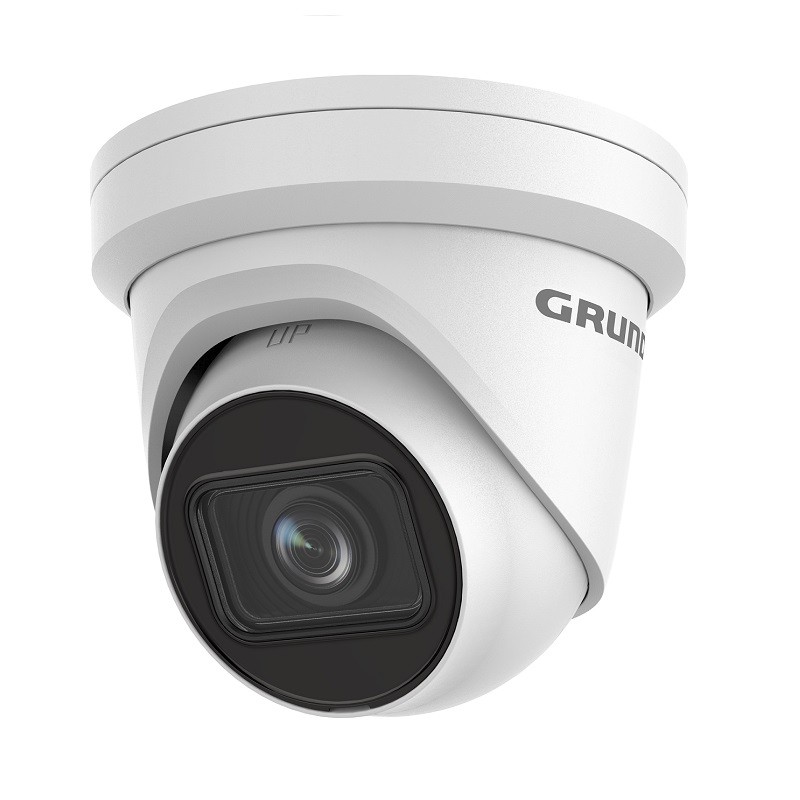

EyeBall IP Camera 4 MP GRUNDIG Professional Line 2.8-12mm GD-CI-CP4637E

4 Megapixel IP camera - Reduction of unwanted alarms - H.265/H.265+, H.264/H.264+ and MJPEG - 0 Lux - IR LED up to 40 m - Motorized 2.8-12mm Varifocal lens - Dual video output: IP and analogue

TECHNICAL FEATURES

Camera

Sensor: 1/3" progressive scan CMOS

Video Resolution: 2688 × 1520

Color Sensitivity: 0.005 Lux @ F1.6 (AGC ON)

Sensitivity White/Black: 0 Lux IR LED on

Shutter Speed: 1/3 ~ 1/100, 000 sec

Slow Shutter: Supported

White Balance: Manual, AWB1, AWB2, Locked WB, Fluorescent lamp, Incandescent lamp, Warm light, Natural

light

Goals

Focal length: 2.8 ~ 12mm motorized autofocus

Iris F-Number: F1.6

Lens connection: Ø14

Field of view: 98° ~ 28° (horizontal), 51° ~ 16° (vertical), 115° ~ 32° (diagonal)

Illuminator

IR LED range: Up to 40 m

wavelength: 850 nm

Video

Col/B : On, Off, auto, IR-cut filter removable (ICR)

Wide Dynamic Range: 120dB

Image Enhancement: BLC, 3D DNR, HLC

 Image Settings: Saturation, Brightness, Contrast, Sharpness, AGC with White Balance Rotation Mode

adjustable for client software or web browser

Day/Night Switch: Support auto, scheduled, day, night, triggered by alarm in

Audio

Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio bit rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps

(AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Ambient noise filter: Yes

Frame Rate

1. Video stream: 50Hz: 25ips (2688×1520, 1920×1080, 1280×720)

60 Hz: 30 ips (2688 × 1520, 1920 × 1080, 1280 × 720)

2. Video stream: 50Hz: 25ips (640×480, 640x360)

60 Hz: 30 ips (640 × 480, 640 x 360)

3. Video stream: 50Hz: 25ips (1280×720, 640×480, 640×360)

60 Hz: 30 ips (1280 × 720, 640 × 480, 640 × 360)

Net

Users: 3 levels: Administrator, Operator, User

Number of Customers: Up to 6 at the same time

Functions: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masking,

watermark, IP address filter

Video Compression: Main Stream:H.264, H.264+, H.265, H.265+

Sub-Stream: H.264, H.265, MJPEG

Third Stream: H.264, H.265

Region of Interest: 1 fixed region for main stream with sub-streamNet

H.264 Code Profile: Baseline Profile / Main Profile / High Profile

Bit rate: 32Kbps ~ 8Mbps

Scalable Video Coding (SVC): Supported

SD Storage: Micro SD/SDHC/SDXC card slot with ANR (up to 256G), NAS (NFS, SMB/CIFS)

Web Browser: MS Internet Exploer 8.0+, Mozilla Firefox 30.0-51, Google Chrome 31.0-44, Apple Safari 8.0+

Network Protocol : TCP/IP, IPv4, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP,

802.1X, QoS, IPv6, Bonjour, UDP, PPPoE, SLS/TLS

Cyber ​​security: 3 levels of user management: administrator, operator, user, AES encryption for

password protection, complicated password, HTTPS (SSL) login authentication,

basic and digest authentication for HTTP/HTTPS, 802.1X authentication, (EAP-LEAP),

802.1X authentication (EAP-TLS), 802.1X authentication (EAP-MD5), watermarking, IP address filtering,

WSSE and Digest Authentication for ONVIF, Security Audit Log, SNMP V2, SNMP V3, TLS

1.0, TLS 1.1, TLS 1.2, TLS 1.2 with updated cipher suites including AES 256 encryption.,

Brute force delay protection, Signed firmware, Secure boot via audit

software

Reset button: Yes

Connections

Video Output(s): 1x CVBS (1Vpp), BNC

Audio Input\\Audio Output: 1-ch audio input with 1-ch audio output

Alarm Input\\Output: 1 input, 1 output (up to 12 VDC, 30 mA)

Network interfaces: 1x 10, 100 Base T, TX PoE (RJ-45)

Intelligent functions

Deep learning analytics: Line crossing detection, intrusion detection, target classification

humans and vehicles

Motion Detection: Off, ON (normal), Expert Mode: 8 user-defined rectangular zones, according to

plan

Intrusion Detection : Enter with loiter in a predefined virtual region

Line crossing: Crosses a predefined virtual line

Face recognition: The human face is recognized in the image and can trigger an event

Anti-sabotage protection: Scene change with defocus

Event Source: Video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal

login, motion detection

Approvals

Degree of Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Regulations: CE, EAC, FCC, RoHS Compliant

Standards: ONVIF (Profile S, Profile G), ISAPI

Environmental

Operating temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity: Less than 95%, non-condensing

Electric

Surge Protection: TVS 2000V lightning protection, surge protection with transient protection

of tension

Power: 12 VDC, PoE (IEEE 802.3af)

Power absorption: Max. 12.5 W

Mechanical

Material: Aluminium

Mounting: Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°, 3-Axis Adjustment

Mechanical

Dimensions: Ø 138 × 126 mm (Ø 5.4 × 5.0 inch)

Weight: 830 g (1.8 lb)

Packaging

Package Dimensions: 170 x 170 x 150 mm (6.7 x 6.7 x 5.9 inch)

Package Weight: 1200 g (2.6 lbs)

Packing units: 18

Bulk package dimensions: 530 x 524 x 325 mm (20.9 x 20.6 x 12.8 inches)

Bulk package weight: 22100 g (48.7 lbs)
