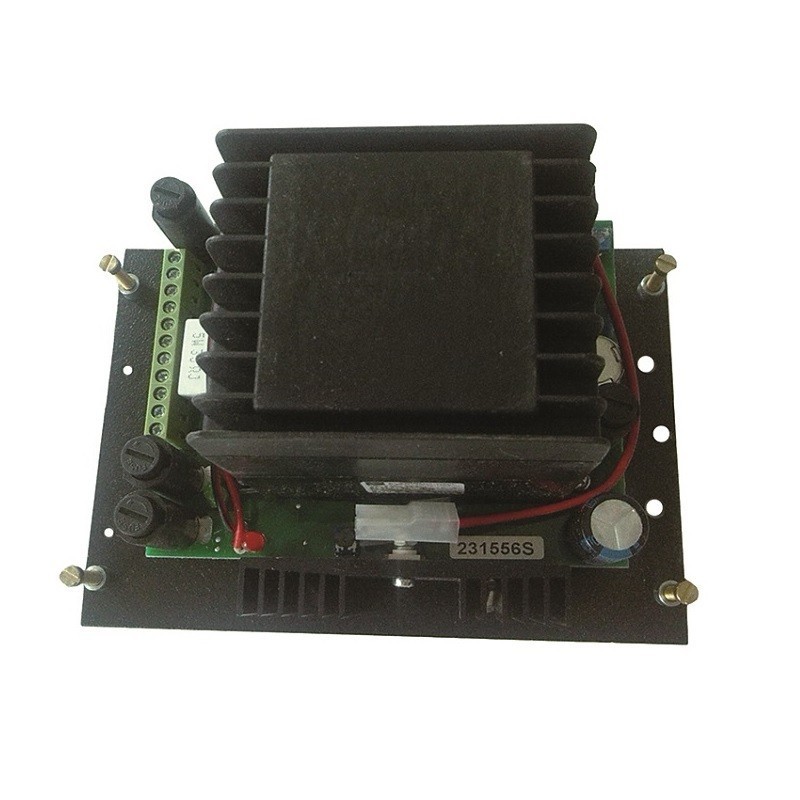

Power supply made with linear transformer (no switching) for uses where stability and ripple are required with low frequencies and to protect the battery and circuits in the event of mains overvoltages. Linear transformer with insulation between primary and secondary windings, incorporated without direct access to the mains voltage.
Maximum external load current 1A.
Limitation of the current supplied by the battery to 2A.
Mains presence and fuse presence sensor.
Battery charging with limited current (selectable).
Protection fuse on all 12 and 24 volt outputs.
Live outputs for signaling power failure or fuses.
Operation and fault indication LEDs.
Protected against battery polarity inversion
Control and self-unhooking/latching in case of overvoltage of the 230Vac primary voltage.
Safeguarding battery life and preserving battery charge during installation (self-start button)
