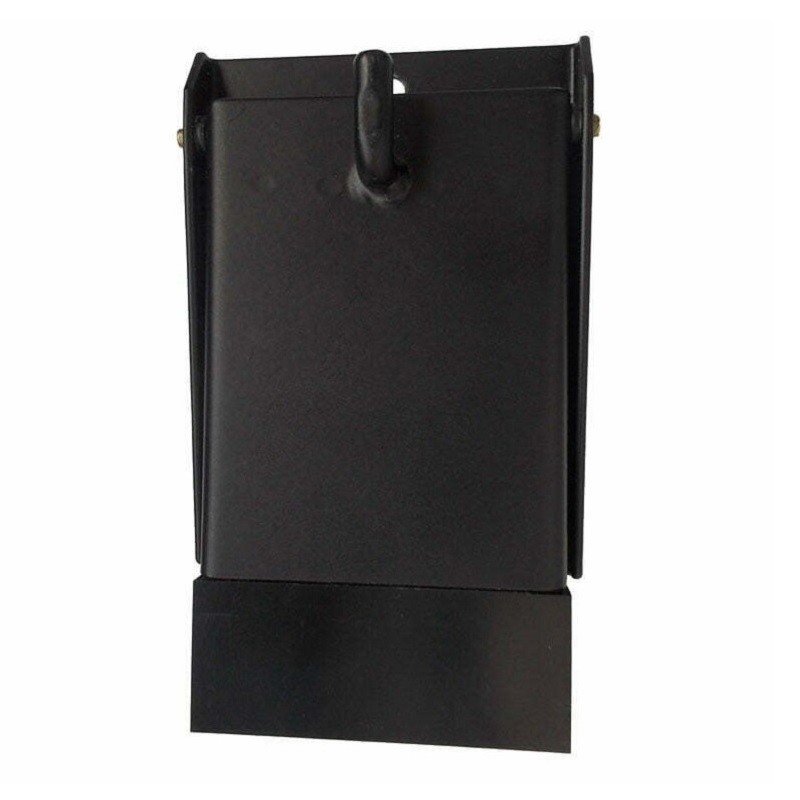

PICASSO QUADRO protection sensor with TX radio PowerG® - WPSPZ410BA

PICASSO is a wall sensor with calibratable vertical scale for the protection of paintings and other objects hanging on the wall.

The PICASSO sensor is a picture hanger sensitive to the touch, movement and/or removal of the object, hung through the use of a wall scale. The panel to be protected hangs directly from the sensor which evaluates its weight and adapts to it. The slightest movement of the frame, attempts to remove it or even just a touch are evaluated in relation to the sensitivity set.

Picasso communicates via its dedicated WI-Art series radio and can also be supplied in the integrated VISONIC PowerG® version or in a low-power version for third-party radio systems.

TECHNICAL SPECIFICATIONS SPZ410BA

Power supply Lithium battery CR2450 3V, 600mAh

Estimated battery life approximately 2 years

Default pre-alarm sensitivity ratio 1:30

Range depending on the transmitter used

Storage temperatures from -20 °C to +70 °C

Dimensions 100 x 62 x 12 mm 21 mm hook included

Average sensor consumption based on the transmitter used

Weight of the protected object 1/50 kg

Frequency according to the transmitter used

Operating temperatures from +5 °C to +55 °C

Weight about 150 g (including battery)

PLEASE NOTE: PRODUCT EXCLUSIVELY COMPATIBLE WITH ITALIAN CENTRAL UNITS
