Standalone Cloud Wi-Fi Control Panel • Bluetooth for configuration • REX touch button • Wi-Fi network (2.4 GHz) • OSDP reader support

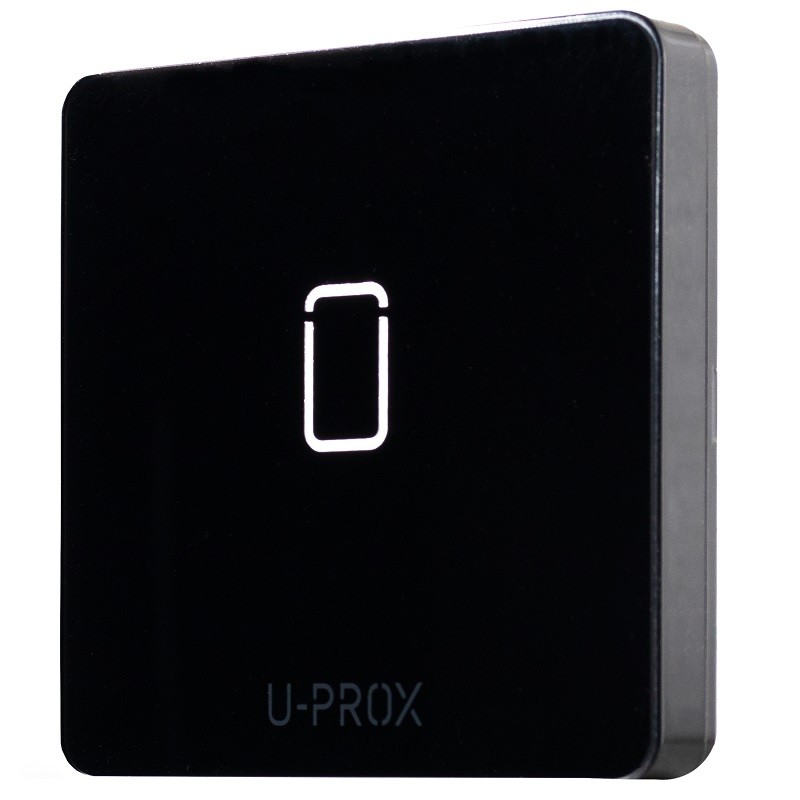

CSIP401 is a Cloud-based Access Control panel, it manages a single door.
It allows different access modes: with numeric code, card or tag and mobile ID, thanks to the U-PROX series keypads.
The device interacts with U-PROX Cloud via Wi-Fi connection,
configured via the U-PROX Config mobile application.
TECHNICAL SPECIFICATIONS
- Inputs: DC - Door contact / RTE - Request to exit button /
Integrated RTE touch button
- Outputs (relays): NO, COM - solid state relay, 1A at 30V (reversing possible) / OUT - alarm output, OC 0.16A at 12V
- Communication protocol with readers: OSDP: one reader, up to 1200 m / RS232: one U-PROX SE/SL reader, up to 10 m
- Wi-Fi connection: 2.4 GHz, 802.11b/g/n, Open/WPA/WPA2/WEP
- Memory: 10,000 user IDs / 20,000 events / 250 weekly programs / 250 holidays
- Power supply: +10.8...+15 V, consumption < 100 mA @12V
- Dimensions: 84.3 x 84.3 x 14.5 mm
- Weight: 0.15 kg
- Case material: ABS+PC plastic, Gorilla Glass
- Operating temperature range: -10°C to +55°C
- Configuration: With the U-PROX Config mobile app via Bluetooth
