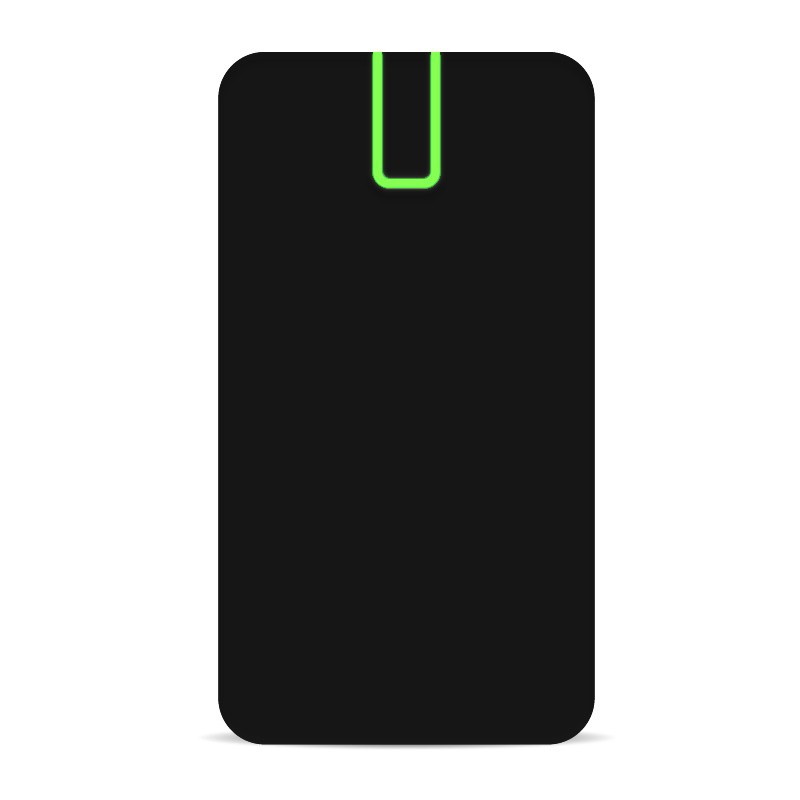

CSSLMINISE U-Prox Versatile Reader

The CSSLMINISE adjustable versatile reader for mobile credentials and proximity identifiers in combination with the U-Prox Key app and U-Prox IDs will enable any access control system to use smartphones as access system credentials.

2.4Ghz radio

Supports 3 operating modes for smartphones with U-Prox ID:

- “Door-Proximity” 10-20cm, reader activated by built-in IR sensor. Recommended for double-sided doors and turnstiles

- “Door” up to 60-70cm

- “Barrier/Gate” adjustable interaction range 1-15m

Mifare® and Mifare®Plus

Works with ISO14443A identifiers, supports SL 1 and SL3 modes for Mifare®Plus. Reading range up to 5cm.

Reads encrypted identifiers with static or diverse key and arbitrary card number.

Simultaneous use of five encryption profiles.

Easy connection

Easy and seamless connection to existing and new access systems, thanks to Wiegand 26, 32, 34, 37, 40, 42, 56, 58, 64 bit, Wiegand with automatic selection, RS232 and Touch Memory supports.

Mobile app

The free U-Prox Key mobile app receives, stores and transmits U-Prox ID mobile credentials between the reader and the smartphone. With the free U-Prox Config mobile app, the reader can be fully adjusted, from indication to encryption modes.

• Mobile Credentials

• NFC and 2.4GHz radio

• Adjustable 2.4GHz distance (0.1 -15m)

• Mifare Plus SL 1/SL3 and Mifare Classic

• Supports multiple 125kHz RFID formats

• Adjustable smartphone

• Adjustable Wiegand interface

• Convenient and secure

• Simple and convenient installation

TECHNICAL SPECIFICATIONS

- Read range: NFC, Mifare and 125kHz RFID - up to 5cm, 2.4GHz radio adjustable 10cm - 15m

- Mifare®, 13.56MHz: ISO14443A: Mifare®Standard, Mifare®HiMemory, Mifare®Ultralight, Mifare®Classic 1K/4K, Mifare®Classic 7UID, Mifare® Plus SL 1 and SL3

- NFC, 13.56MHz: ISO 14443/15693

- RFID, 125 kHz: ASK and FSK

- Housing material: ABS+PC plastic

- Color: black, light gray

- Power supply: +9 ~ +15 VDC, max current up to 90 mA Voltage ripple - up to 500 mVp-p

- Wiring: 8-wire cable, max distance from panel - up to 150 m for Wiegand interface, up to 30 m for Touch Memory interface

- Environmental: IP65, -40°C ~ +60°C

- Dimensions: 45 x 80 x 12.5 mm

- Interface: OSD, Wiegand 26, 32, 34, 37, 40, 42, 56, 58, 64 bit, Wiegand Auto, RS232 and TM

- Weight: 70gr
