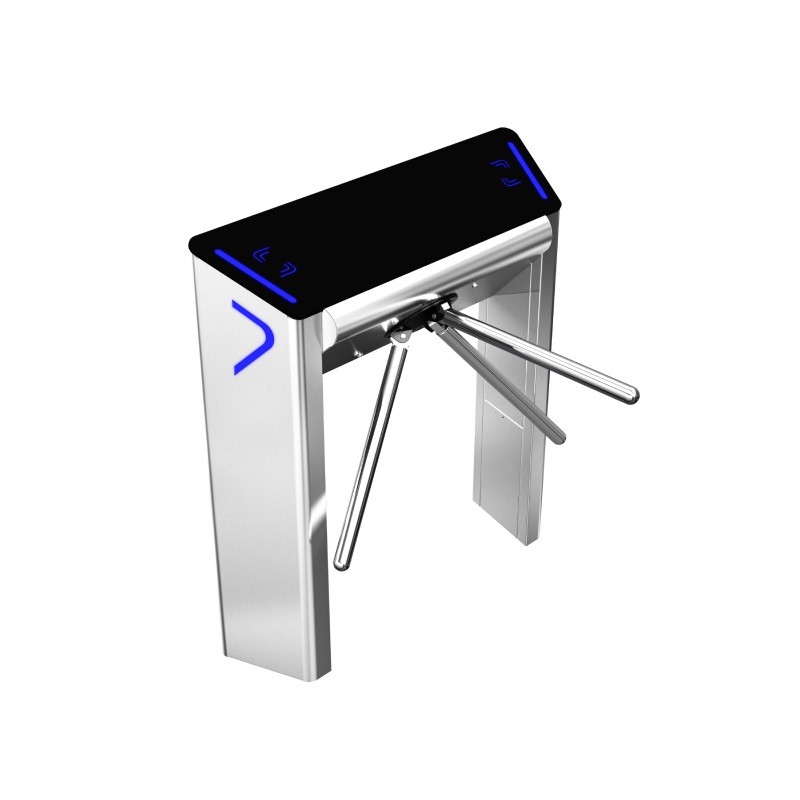

TiSO by Sicurit ONYX-M Tripod Turnstile
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
NOTICE: It takes up to 10-14 working days for a quote with TiSO products - Specify the required finish - It takes 10 to 11 working weeks to process an order if not in stock
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
Ergonomically designed with stylish lines which encapsulates a sturdy chassis and efficient control system, producing a unit which is ideal for today’s contemporary interiors.
These turnstiles are equipped with an automatic bi-directional servo-drive mechanism with a robust locking system and are able to operate reliably and efficiently in high traffic flow locations.
This model is equipped with an automatic anti-panic system, where, in the case of an emergency, the arms are automatically lowered and users can freely pass through unhindered.
The cabinet tops are made of a scratch-resistant black glass, which allows simple maintenance and long lasting aesthetics.
The sleek LED’s follow the lines of the turnstile’s body, and can be both static and dynamic in operation. Additionally the pulsing display indicates the direction of travel through the turnstile.
Two RFID readers are integrated under the top glass reader panels, with LED lighting which provides a clear indication for users to present their access control cards. The combination of all of these LED features clearly determines the status of the passage (Green – Access authorised, Red- Access denied and Blue – Standby mode).
Technical features
Model: Onyx-M
Crossing capacity in free access mode, person/min: 60
Crossing capacity in single access mode, person/min: 25
Passage width, mm: 600
Dimensions (WxLxH), mm: 802x1005x1076
Mechanism: Servo-driven
Blocking mechanism: two electromagnetic stoppers (separate locking system)
Emergency mode (when power goes off): fail-safe (lowering the arm)
Drop arm function: Activated manually or by command from the access control / fire alarm system in the absence of power, it works automatically, after the appearance of power it returns to its original position
Standard housing: Brushed SS AISI 304
Available housing: Brushed SS AISI 316 Polished SS AISI 304 Polished SS AISI 316 Powder coated (any RAL up on request)
Tripod hub: Cast aluminum with stainless steel arms
Voltage: AC (100-240)V, 50/60Hz; DC source 12 V
Maximum power consumption, W: 55
Standard ambient temperature, °C: from +1 to +40
Enclosure rating: IP41 (only for indoor installations)
MCBF, cycles: 5 000 000
Source: https://tiso-turnstiles.com/catalog/tripod-turnstiles/onyx-m
