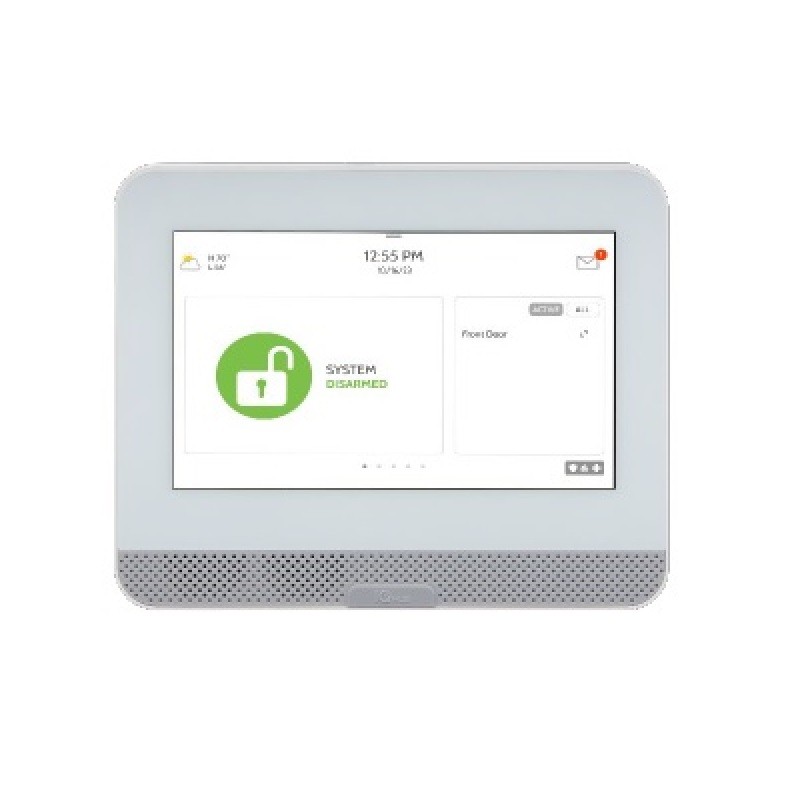

IQ4 Hub WQLS128HUBPM Qolsys Multi-Management Central with 7'' Touchscreen Display
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
QOLSYS MULTI-MANAGEMENT CONTROL PANEL WITH CLOUD POWER MANAGE
• 128 zones
• 4 Areas
• 242 Users
• 85db internal siren
• PowerG
• 24h backup battery
• Z-Wave Plus (800 series)
• LTE and WiFi
• Double SRF with PowerG
• Disarming via Bluetooth
TECHNICAL CHARACTERISTICS
Display: 7’’ LCD
Resolution: 1024 x 600 pixels
Brightness: 300 cd/m2
RGB color: 24 bit, 16.9 million colors
Touchscreen: Capacitive glass
User codes: Up to 242 Role-based (Reseller, Installer, Master, User, Guest, Duress)
Wifi: 802.11 a/b/g/n/ac dual band 2.4/5GHz WiFi including built-in access point functionality
Cellular: LTE Category 4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 Non-FirstNet, 26)
Communication Protocol Fibro Protocol Compatible with Sur-Gard and PowerManage receivers
Z-Wave Plus (800): 137 total (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 vari)
PowerG: Up to 128 devices 868MHz long range secure encrypted two-way wireless
Security RF: Up to 128 devices 433MHz encrypted S-Line
Platform: PowerManage OS. Signal reception, remote configuration, ConnectAlarm and AlarmInstall applications
Bluetooth: Disarming and audio streaming. Bluetooth Low Energy (BLE) 4.2
Zigbee: Optional card
Flash memory: Internal storage. 16GB NAND Flash
LED Indicator: Full-color RGB status LED
Speaker/Siren: 4W front speaker + 85dB piezo siren
Microphone: 1x MEMS (Micro-Electro-Mechanical System) microphone
Tamper: Dual panel with wall tamper switch,
spring release and intrusion alerts
Battery: Rechargeable 3000mAh Li-ion battery with 24+ hours of battery life
Buttons: Single wake/sleep button, all user controls via touch interface
Dimensions: 155mm x 191mm x 26mm
Power: 7V DC 1000mA DC, 100-240VAC 50/60Hz input
Mounting: SmartMount wall mount included SmartMount table stand
Temperature: 0°C to 49°C, up to at 93% relative humidity, for indoor use only, use only in normally dry places
Operating system: Android 9. Security & Home Automation Touch and Swipe interface
Processor: 8-core Qualcomm Snapdragon 8-core SOM (system on module) with 16GB NAND memory
5697
