DISC® Passive infrared from ceiling via radio diameter 10 m - WRM240N
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)

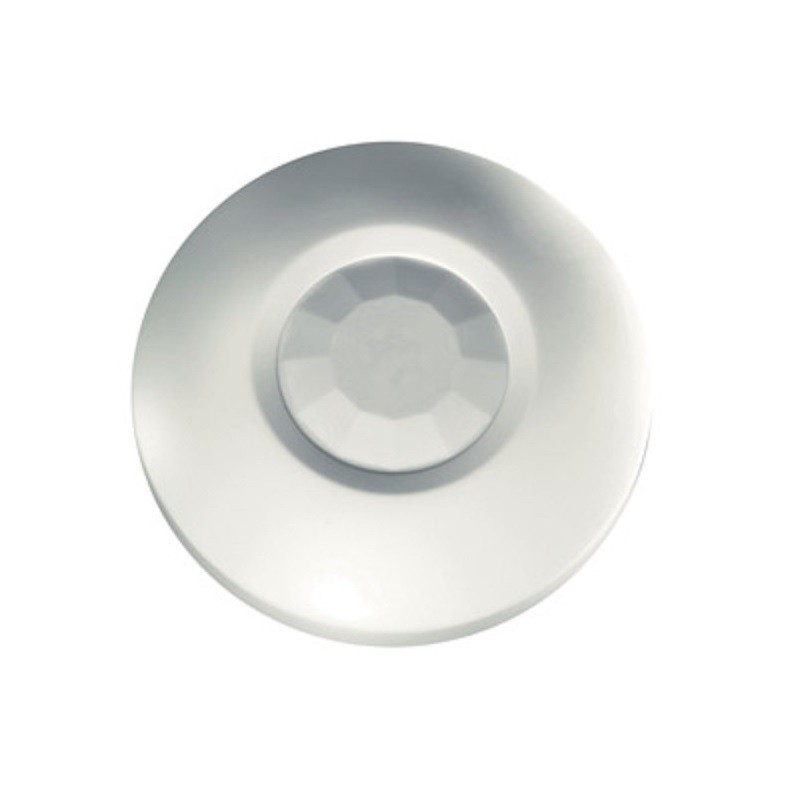

DISC, the smallest wireless passive infrared ceiling sensor currently on the market - it is a microprocessor controlled VISONIC device designed to be easily installed. Provides a semi-conical cover with a maximum diameter of 10.5 meters. when installed on the ceiling at a height of 3.6 meters. The patented TMR® (True Motion Recognition) algorithm allows this detector to distinguish the real movement of an intruder from other sources of disturbance that could cause false alarms. The DISC sensor provides multiple beam coverage and incorporates a wireless supervised transmitter - frequency 868MHz. - compatible with the Visonic systems via radio PowerMax PRO® and Express®.
TECHNICAL SPECIFICATIONS
- Type: Double element pyroelectric sensor and low noise
- Ceiling mounting: max 3.6 meters. in height
- Protection tamper on opening
- White light protection
- Very low absorption (1400mA / h)
- Programmable motion event counter
- Power supply: 3V lithium battery - type CR-123A
- Typical battery life: 3 years
- Walk test function: ON / OFF
- LED indicator: red light
- Reset time: 2 minutes
- Transmission frequency: 868MHz.
- Signal coding: over 16 million combinations
- Supervision every 60 minutes
- Operating temperature: from -10 ° to + 50 ° C
- Compliance: FCC part 15
- Size: 86 x 24mm. (Ø x H)
- White color
