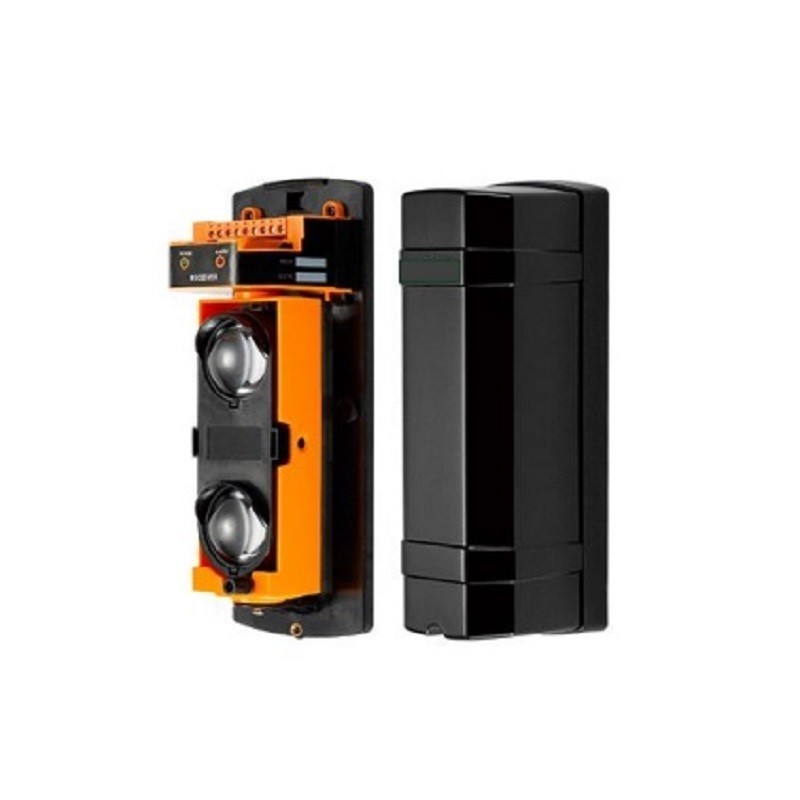

Triple outdoor barrier SICURIT range 250m BAT250
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Tags:
kit sicurit anti intrusion safety BAT250
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
Resistance to very intense external light sources, up to 50,000 Lux, with a built-in automatic light regulation filter system, which guarantees the functioning of the beams even in the presence of strong external ambient light (sun, car headlights). Structured to resist in the most varied climatic conditions. Thanks to the compact design, this series of outdoor infrared rays can be used for both single beam installations and multi-beam configurations, thanks to the 8 selectable digital frequencies. Disqualification relay output active in case of heavy fog. The numeric digit on the receiver facilitates the alignment of the optics. Optical aiming sight available.
The dip switches allow you to select the different operating modes.
Ideal for installation in outdoor columns of the Sicurit BEC and BET series.
TECHNICAL FEATURES:
Power supply voltage: 12 Vdc
Current Absorption: 110mA
Alarm output: Relay: C. - N.C. (free from potential)
Disqualification output: Relay: C. - N.C. - N.A. (free from potential)
Tamper: C/NC
Outdoor range: 250 m.
Indoor range: 750m.
Horizontal lens adjustment: 180° horizontal
Vertical lens adjustment: 20° horizontal
Operating temperature: -25° to +55°C
Degree of protection: IP65 (in its own container)
Number of lenses: 3
Detection mode: all lenses stopped simultaneously
Optical source: Digital pulse infrared beam - 8 selectable frequencies
Interruption time: adjustable 50 – 100 – 300 – 700 mS
Frequencies/Channels: 8
LED with automatic switch-off after approximately 60 minutes from power supply
Weight: approximately 1.5 Kg. (package)
