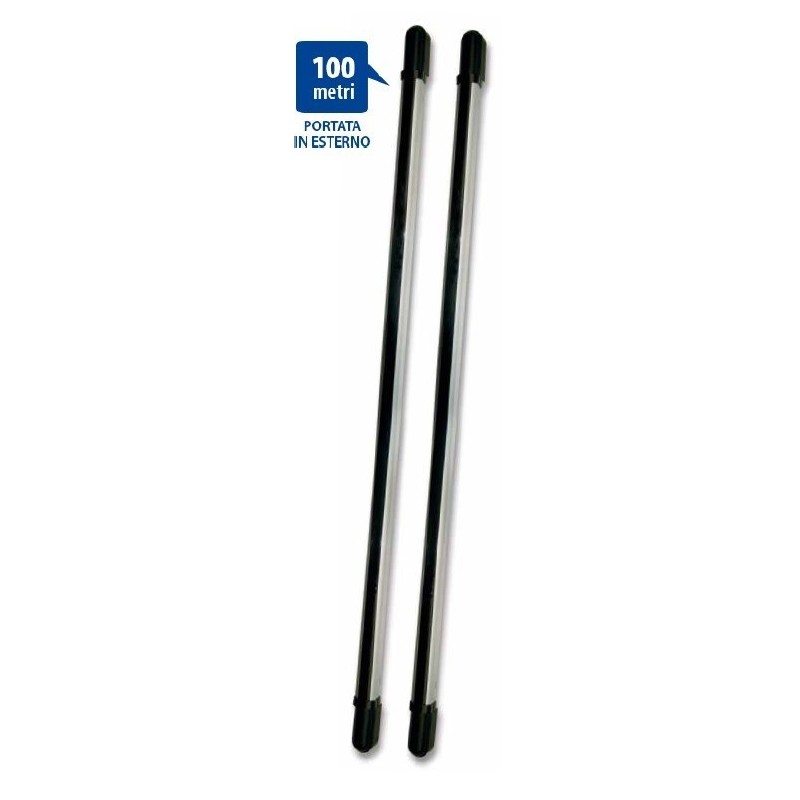

New MINI BEAM series by SICURIT - Mini bidirectional outdoor aluminum infrared barriers available in various configurations.
This model is part of the 100-meter range series - it features 12 infrared beams and a column height of 2 meters. They can also be installed without a synchronization wire for use on existing systems without synchronization. Connecting a synchronization wire is recommended to take advantage of the barrier's full features in new systems.
TECHNICAL SPECIFICATIONS
Range: 100 meters
IP65 outdoor protection rating
Columns: 2 m high
Number of IR beams: 12
Automatic gain adjustment system that increases immunity to atmospheric disturbances.
Emission power can be adjusted based on distance (near - medium - far).
Alarm generated by interrupting 2 adjacent beams
Ideal for protecting gates, windows, glass doors, facades, entrances, etc.
Power supply: 12-14 VDC
Current consumption per pair: <100 mA
Column cover dimensions: 39 x 48 mm (W x D) - column: 36 x 35 mm (W x D)
Channels: 2 (A and B)
IR beam interruption time: 40 mSec
Alarm relay release time: minimum 1 sec
Alarm relay contact: N.C./N.O. - 30V 2A resistive
Operating temperature: -25°C / +70°C
Casing: Aluminum
