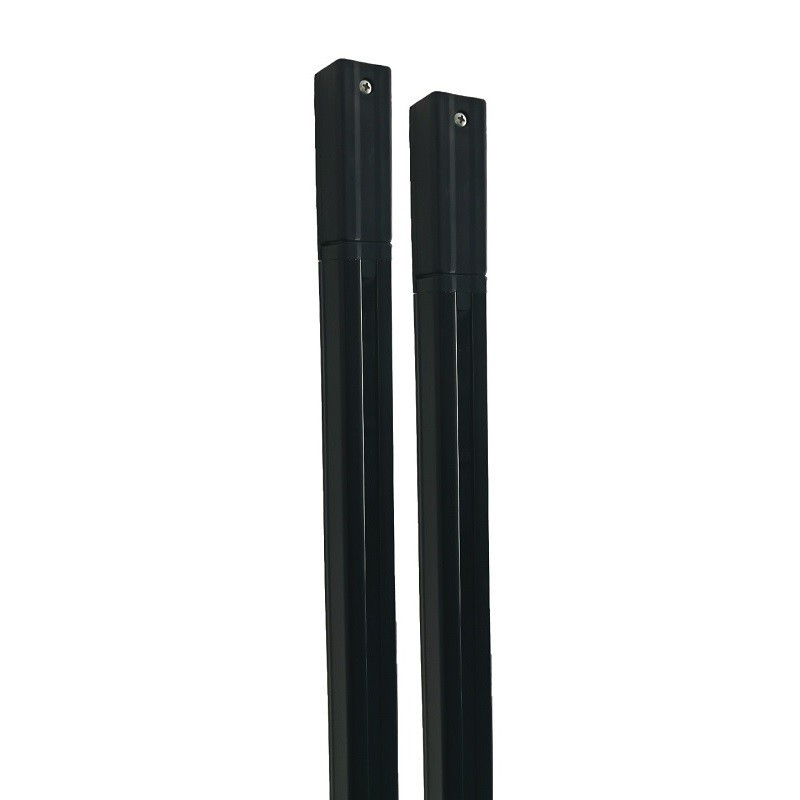

BLACK Mini synchronized AND/OR ir barrier outdoor H2110mm - BSA200N
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
The BSA series barriers constitute complete external perimeter protection, reliable from unwanted intrusions. They are internally made up of a series of active and coded infrared beams placed at a distance of approximately 23 cm from each other to form an impassable barrier.
The BSA series barriers allow you to leave doors and windows open, with the certainty that any intrusion will be immediately reported by the alarm system. Each beam is made up of 2 separate and independent rays, to prevent small insects from interrupting the infrared ray and generating an unwanted alarm.
TECHNICAL SPECIFICATIONS
Supply voltage 11.5 - 14.5 Vdc
Tx absorption 35mA (45mA)
Rx absorption in alarm 47 mA / Rx at rest 50 mA
Pulsed IR wavelength 940 nm
Max range External 6m, Internal 9 m
Max darkening allowed 50%
Sampling time 90 ms (*)
N.C. alarm relay not powered, range 100mA @ 60V—, 5 Ohm
Dimensions
Height 2110 mm
Base 24 mm
Depth 21 mm
Operating temperature - 20° C ÷ + 50° C
IP protection rating IP 54
Black colour
Weight 450g
