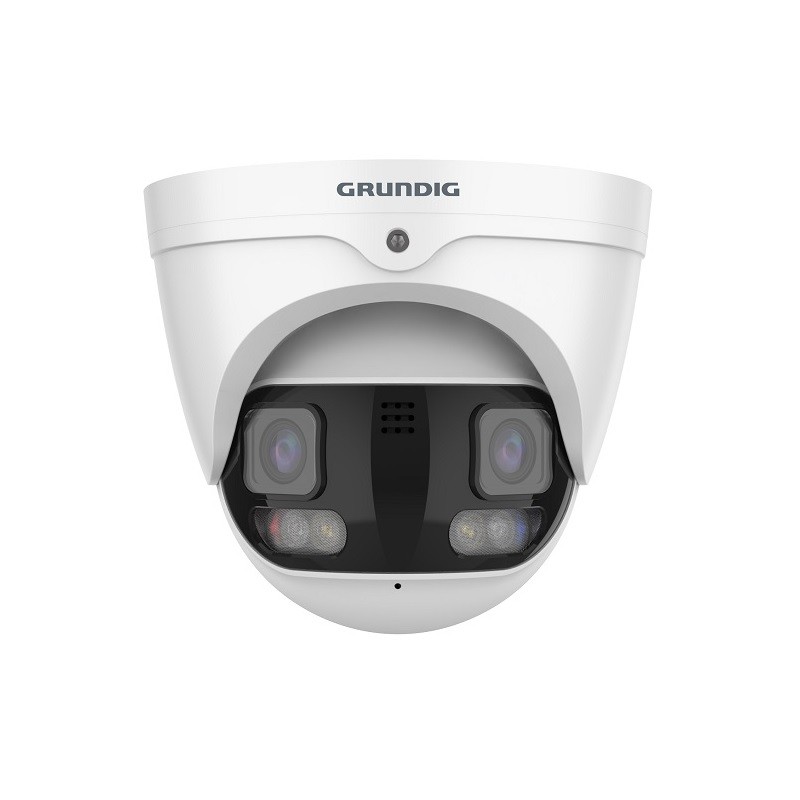

8 MP 180° Panoramic IP Camera GRUNDIG Smart Line GU-CI-AP8616Q

TECHNICAL SPECIFICATIONS

CAMERA

Image Sensor: 1/2.7" Progressive Scan CMOS

Resolution (MP): 8 MP

Video Resolution: 5120 x 1440

Color Sensitivity: 0.001 Lux @ F1.6 (AGC ON)

B/W Sensitivity: 0 Lux IR LED On

Shutter Speed: 1/5 ~ 1/20000s

White Balance: Automatic, Manual

LENS

Lens Focal Length: 2 x 2.8 mm

F Number iris: F1.0

Lens mount: M12

Lens drive type: Fixed iris

Field of view: 180°

Illuminator

Max. IR distance: Up to 30 m

VIDEO

Col/B&W: On, Off, Auto, Removable IR-cut filter (ICR)

Wide dynamic range: Digital WDR

Image enhancement: BLC, 3D DNR, HLC

Day/night switching: Supports auto, scheduled, day, night

Privacy zones: 6 zones, rectangle

AUDIO

Audio compression: G.711

Ambient noise filtering: Yes

Audio detection: Audio burst increase, audio burst decrease

GENERAL

Reset button: Yes

FRAME RATE

Main stream: 50Hz: 15fps (5120 x 1440, 4608 x 1296, 4096 x 1152, 3840 x 1080, 3072 x 864)

60 Hz: 15 fps (5120 x 1440, 4608 x 1296, 4096 x 1152, 3840 x 1080, 3072 x 864)

Sub-Stream: 50 Hz: 15 fps (1536 × 432, 1024 x 288)

60 Hz: 15 fps (1536 × 432, 1024 x 288)

NETWORK

Video Compression: H.264, H.264+, H.265, H.265+, MJPEG

Region of Interest: 8 fixed regions for each stream

NETWORK

H.264 Code Profile: Baseline Profile/Main Profile/High Profile

Bit Rate: 128Kbps to 8Mbps

SD Memory: Micro SD/SDHC/SDXC card slot with ANR (up to 256G), NAS (supports NFS, SMB/CIFS)

Network Protocol: TCP/IP, IPv4/IPv6, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, PPPoE,

SNMP

Cyber ​​Security: Multiple password levels, password protection, complicated password, HTTPS encryption,

digest authentication for HTTP/HTTPS, IP address filtering, WSSE and digest authentication for

ONVIF, RTP/RTSP over HTTPS, audit timeout settings, security audit log, TLS 1.0, TLS 1.1 and TLS

1.2, TLS 1.2 with suite updated encryption including AES 256 encryption, Brute Force Delay

Protection, Signed Firmware.

Web Browser: Live View Plug-in Required: IE10/IE11

Non-Live View Plug-in: Chrome 57+, Mozilla Firefox 52+, EDGE 89+

Local Service: Chrome 57+, Firefox 52+, EDGE 89+

I/O INTERFACE

Audio Input/Output: Built-in Microphone and Speaker

Alarm Input/Output: Built-in Red and Blue Flashing Lights

Network Interface: 1x 10, 100 Base T, TX PoE (RJ-45)

INTELLIGENT FUNCTIONS

People and Vehicle Detection: Adjustable whether people, motorized or non-motorized vehicles should be detected.

Intrusion Detection: Enter and loiter in a predefined virtual region

Line Crossing: Cross a predefined virtual line with target classification Pedestrians and/or motor vehicles can be

configured. Region Entry: Enter a predefined virtual region from outside

Region Exit: Exit a predefined virtual region

Unattended Baggage: Objects left in the predefined region such as luggage, bag, hazardous materials

Object Removal: Detect objects left or lost in the predefined region such as. In this case, an alarm notification

or signal will be sent automatically and in real time.

Face Detection: Real-time face recognition and instantly compared with a watchlist

Face Recognition: Detect and recognize faces by comparing them with stored portrait images. Actions can be

triggered by the allowed list, blocked list and more

License Plate Recognition: Detect and recognize car license plates. (Data import-export function, actions can be

triggered by the allowed list, blocked list and more, only supported with SD card insertion.) Heat Map: Displays the number of people in the surveillance area over a period of time with a simple and intuitive color scheme.

Queue Length Detection: Counts people in a predefined area and measures the service time. You can set the area, the maximum number of people in it and the maximum service time

Tamper Protection: Scene Switching

Intelligent Function Limits: Only one of the AI ​​functions can be selected at a time

Event Source: A variety of internal or external events can trigger actions such as alarm contacts, motion detection, video analysis parameters, etc.

Event Action: Send Email, Trigger Alarm Output, Push Notification for GSVM and C-WERK App, Upload to FTP/Cloud, Trigger HDD Recording and/or Image Capture, Show Message on Screen, Blue and Red Flashlight, Voice Prompt, Siren

APPROVALS

Protection Rating: IP67 (IEC 60529-2013)

Regulation: Compliant with CE, FCC, RoHS

Standard: ONVIF (Profile S, Profile G, Profile T, Profile M), SDK/API

ENVIRONMENTAL

Operating temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity: less than 90%, non-condensing

ELECTRICAL

Power supply voltage: 12 VDC, PoE (IEEE 802.3af)

Power consumption: max. 13.5 W

MECHANICAL

Mounting: Four flexible lenses in one track, sliding range -60° to 60°, tilt: 0° to 90°, rotation: 0° to 355°

Dimensions: Ø 135 x 112 mm (Ø5.3 × 4.4 in)

Weight: 750 g (1.65 lb)

PACKAGING

Packaging dimensions: 180 x 180 x 150 mm (7.1 x 7.1 x 5.9 in)

Packaging weight: 1100 g (2.4 lb)

Packaging units: 8

Bulk packaging dimensions: 375 x 375 x 320 mm (14.8 x 14.8 x 12.6 in)

Bulk packaging weight: 9800 g (21.6 lbs)
