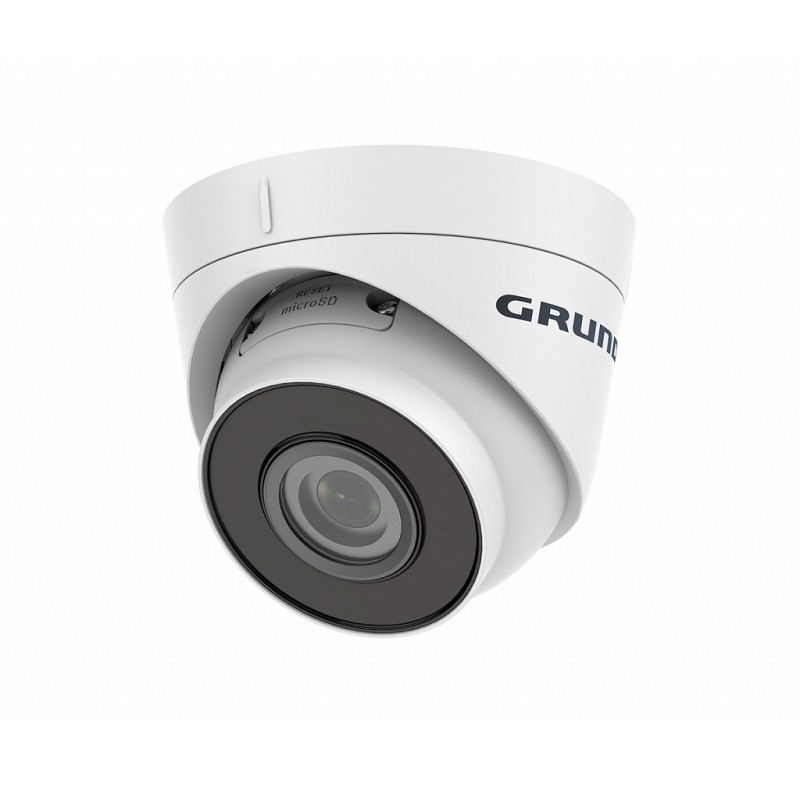

GRUNDIG 5 MP EyeBall IP Camera Essential Line GD-CI-AC5617E
THIS PRODUCT IS SHIPPED ONLY TO ITALY
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
5 Megapixel EyeBall IP camera - Wide angle lens with 2.8 mm fixed focal length - 30 m IR range - Backlight compensation (BLC) - 3D dynamic noise reduction (3D DNR) & 120 DB WDR - Micro SD, SDHC, SDXC slot
TECHNICAL FEATURES
Camera
Sensor: 1/2.7” progressive scan CMOS
Video Resolution: 2560 × 1920
Color Sensitivity: 0.01 Lux @ F1.2 (AGC ON)
Sensitivity White/Black: 0 Lux IR LED on
Shutter Speed: 1/3 ~ 1/100, 000 sec
Slow Shutter: Supported
Goals
Focal length: 2.8 mm
Iris F-Number: F2.0
Optics mount: M12
Field of view: 98°
Illuminator
IR LED range: Up to 30 m
wavelength: 850 nm
Video
Col/B : On, Off, auto, IR-cut filter removable (ICR)
Wide Dynamic Range: 120dB
Image Enhancement: BLC, 3D DNR
Image settings: Saturation, brightness, contrast with sharpness Adjustable via client software or web
browser
Day/Night Switch: Support auto, scheduled
Net
Functions: Anti-flicker, Mirrorr, Password Protection, Privacy Mask, Watermark
Video Compression: Main Stream: H.264, H.264+, H.265, H.265+
Sub-Stream: H.264, H.265, MJPEG
Region of Interest: Support 1 fixed region
H.264 Code Profile: Baseline Profile / Main Profile / High Profile
Bit rate: 32Kbps ~ 8Mbps
Frame Rate: Main Stream 50 Hz: 12.5 ips (2560 x 1920), 20 ips (2560 x 1440), 25 ips (2304 x 1296, 1920 ×
1080, 1280 x 720)
60 Hz: 15 ips (2560 x 1920), 20 ips (2560 x 1440), 30 ips (2304 x 1296, 1920 x 1080, 1280 x 720)
Sub Stream 50 Hz: 25ips (640 x 480, 640 x 360, 320 x240)
60Hz: 30ips (640 x 480, 640 x 360, 320 x240)
Network Protocol : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, IGMP, 802.1X,
QoS, IPv6, UDP, Bonjour
Cyber security: 3 levels of user management: administrator, operator, user, AES encryption for
password protection, complicated password, HTTPS (SSL) login authentication,
basic and digest authentication for HTTP/HTTPS, 802.1X authentication, (EAP-LEAP),
802.1X authentication (EAP-TLS), 802.1X authentication (EAP-MD5), watermarking, IP address filtering,
WSSE and Digest Authentication for ONVIF, SNMP V2, SNMP V3, TLS 1.0, TLS 1.1, Security
against brute force delay, signed firmware, secure Boot via hardware control
Connections
Network interfaces: 1x 10, 100 Base T, TX PoE (RJ-45)
Intelligent functions
Intrusion Detection: Motion Detection
Event Source : Video tampering, network disconnected, conflicting IP address
Approvals
Protection Degree: IP67 (IEC 60529-2013)
Regulations: CE, EAC, FCC, RoHS Compliant
Standards : ONVIF (Profile S, Profile G), ISAPI
Environmental
Operating temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity: Less than 95%, non-condensing
Electric
Power: 12 VDC, PoE (IEEE 802.3af)
Power Absorption: Max. 7 W
Mechanical
Mounting: Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°, 3-Axis Adjustment
Dimensions: Ø 111 × 83 mm (Ø 4.4 × 3.2 inch)
Weight: 320 g (0.71 lb)
Packaging
Package Dimensions: 150 x 150 x 141 mm (5.9 x 5.9 x 5.6 inch)
Package Weight: 600 g (1.3 lbs)
Packing units: 27
Bulk package dimensions: 467 x 467 x 446 mm (18.4 x 18.4 x 17.6 inches)
Bulk package weight: 16700 g (36.8 lbs)
