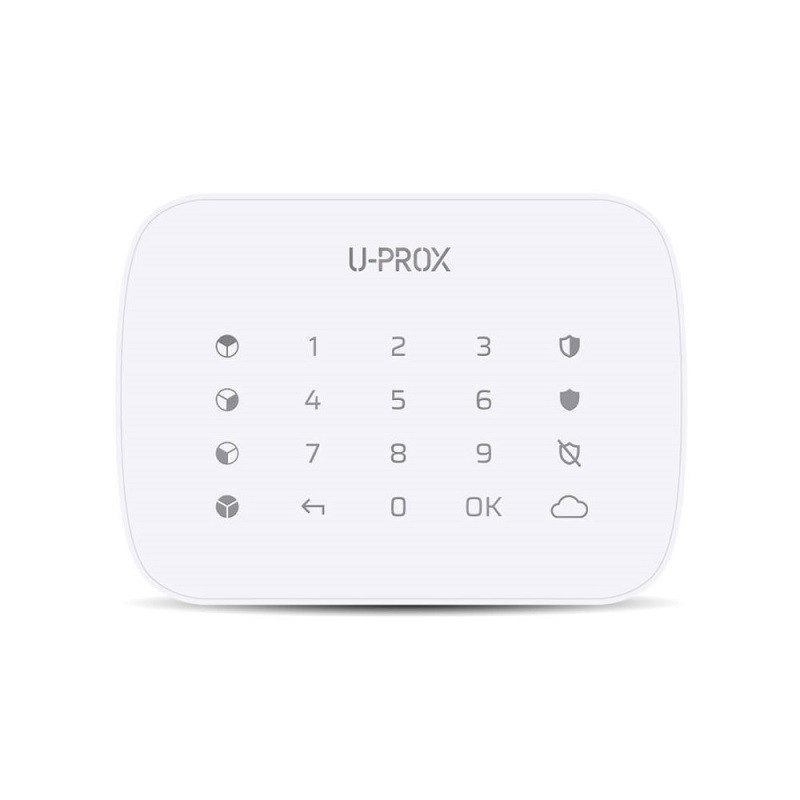

WHITE Keypad Via Radio 4 partitions U-PROX WUTAST4

WUTAST4 is a wireless keypad designed to arm and disarm the system, display active alarms and system status, including ready/not ready indication of each controlled partition.

The keypad can control 4 partitions (security groups).

The keypad will lock out for 10 minutes after the fifth attempt to enter an incorrect code.

The device connects to the control panel and is configured using the U-Prox lnstaller mobile app.

• Touch and backlit buttons

• Reliable communication

• Ergonomic keyboard

• Elegant design

• Operates up to 2 years on AAA batteries

• Quick and easy installation

• Compact dimensions

• Wide range of operating temperatures

• Range up to 4800 meters

• Identification with code

Technical features

Radio frequency: ISM band wireless interface, multi-speed with more channels

ITU Region 1 (EU, UA): 868.0 to 868.6 MHz, 100 kHz band, 20 mW max, up to 4800 m (line-of-sight)

Communication: secure two-way, sabotage detection, key - 256 bit

Consumption: <30 µA (standby), <80 mA (active)

Code length: 6

Power supply: 3V, 4 x LR03 AAA alkaline batteries (included)

Partitions: 4

Battery life: up to 2 years

Operating temperature: -10°C to +55°C

Color: black and white

Dimensions: 167 x 120 x 15mm

Weight: 130g

PLEASE NOTE: PRODUCT EXCLUSIVELY COMPATIBLE WITH ITALIAN CENTRAL UNITS
