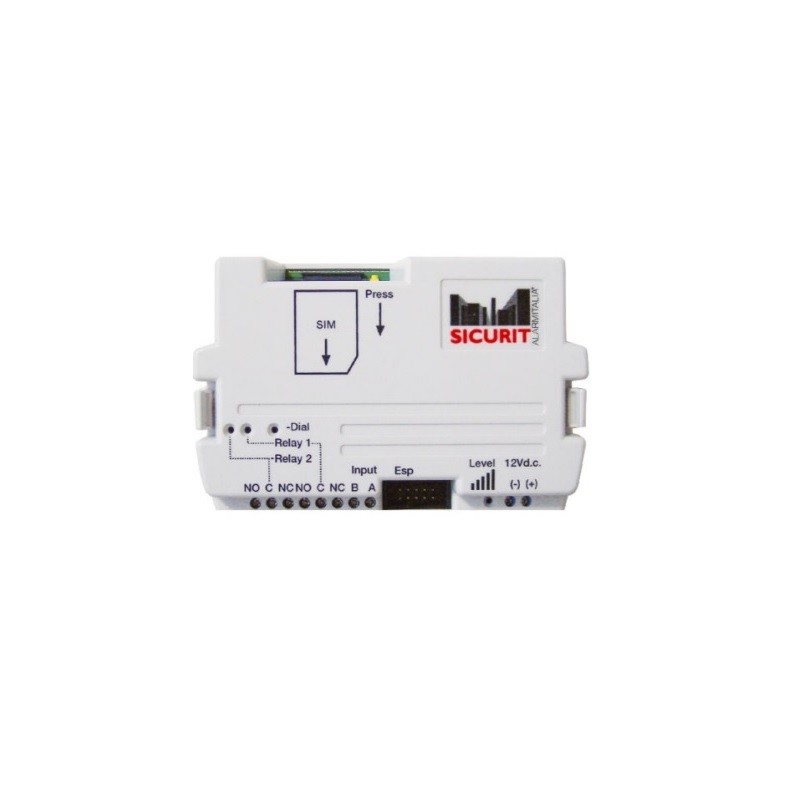

CTC18004G 2G/4G Interface Communicator
THIS PRODUCT IS SHIPPED ONLY TO ITALY
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
For the price of this product (if not listed) and a possible order, ask a quote. For multiple products, create a single list with the respective quantities. You'll receive the quote by email within 24 hours
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
Selectable 2G/4G Interface Communicator, 2 Inputs and 2 Outputs, expandable.
• Micro SIM slot
• Converter from PSTN to GSM/4G line
• 2 N.O. inputs for sending alarm signals via SMS / telephone ring
• 2 N.O. / N.C. relay outputs controllable by SMS / free call (max 200 numbers)
• 4 virtual channels for system configuration
• Antenna supplied with 80 cm cable
• LEDs for network signal quality, communication and output status
• 12V DC power supply
• Programming with CTCSOFT / SMS software
TECHNICAL CHARACTERISTICS
Transmission type: 2G/4G
N.O. inputs / N.O. relay outputs - N.C.: 2 / 2 (with CTC1642 expansion they become 6 / 4)
Programmable virtual channels: 4 (Survival, Diagnostics, Output control)
4-digit user code: 1
4-digit installer code: 1
Telephone number digits (maximum): 16
Programmable telephone numbers: Max 200
Interface programming: CTCSOFT / SMS software
Power supply: 12Vdc 1.5A
Backup battery: 12Vdc
Absorption: ≤2.5W (at rest)
Operating temperature: +5℃～+45℃
Dimensions: 120x80x40 mm
Operators tested at 11/2024: Tim (2G, 4G) - Vodafone (2G, 4G) - Wind3 (2G, 4G) - Iliad (2G, 4G) - Poste Mobile (4G)
