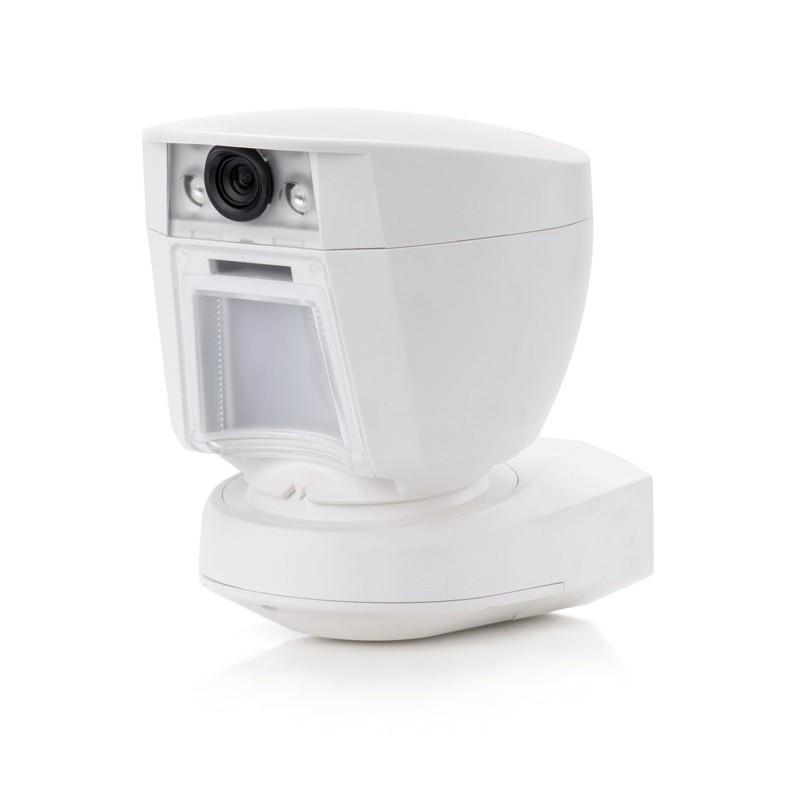

Outdoor wireless sensor with OCTA-PIR® patented VISONIC system with 8 independent infrared beams and working in an effective QUAD configuration with body movement recognition system (TMR®) for each single beam.
Now also available with a camera on board!
8 independent INFRARED RAYS arranged on 3 beams at different heights for outdoor safety at the highest level with coverage up to 12 m.
This sensor also has special protection against atmospheric agents such as snow, rain, dust, wind and direct sunlight.
CAMERA - Even more secure! Choose the model with camera on board to get an immediate visual feedback on the cause of the alarm.
ANTIMASKING - intelligent anti-masking system able to recognize the effective attempt to cover the sensor, for example with a spray, compared to the presence of raindrops or humidity that can naturally be deposited on the sensor.
IMMUNE TO ANIMALS - Sensor immune to animals up to 18 kg of weight.
Technical specifications
Coverage: 12 mt. - 90 °.
Detection technology: 8 independent infrared beams in the QUAD configuration.
Immune to animals: up to 18 Kg.
ANTIMASKING: YES
Power supply: 2 3V lithium batteries included (CR123A).
Average battery life: 3 years
Wireless frequency: Random frequency 868-869MHz.
Transmission protocol: PowerG®.
Wall mounting.
Mounting height: from 1.5 to 3 meters
Vertical adjustment: from 0 ° to 10 ° with 2.5 ° steps.
Horizontal adjustment: from -45 ° to + 45 ° with 5 ° steps.
Operating temperature: from -35 ° to + 60 ° C
Dimensions: 157 x 147 x 124 mm.
Weight: about 600 gr.
Protection level: IP55
Construction: ABS
White color
EMI immunity: CE and EN 50131
PLEASE NOTE: PRODUCT EXCLUSIVELY COMPATIBLE WITH ITALIAN CENTRAL UNITS
