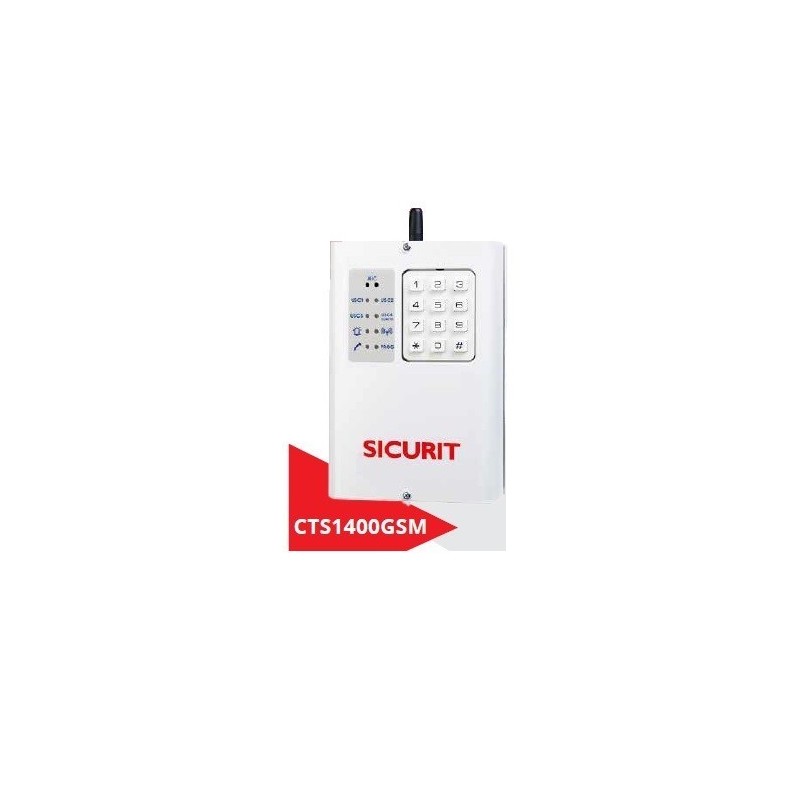

GSM telephone dialer by Sicurit - CTS1400GSM

The CTS1400GSM is a telephone dialer on the GSM network.

The telephone dialer has a vast digital voice menu of great clarity, which accompanies the installer and the end user to its full use.

CTS1400GSM is equipped with a scanning function that allows, without inserting the SIM, to search for the best operator in terms of signal level.

The programming of messages and parameters can be carried out from the keyboard, or remotely via voice call or SMS messages, as well as remote queries.

FEATURES

Alarm inputs: 4

Alarms start: Positive or negative drop, positive or negative presence

Possibility of priority channel: Yes

OC fault output: 1

OC outputs that can be managed locally via keyboard and remotely

programmable as step-by-step or impulsive: 3

Possibility of associating an input to an output: Yes

Ability to customize the voice message: Yes

Codes: Installer and user

Alarm voice messages: 6 (duration of about 12sec)

Sending alarm messages: Customizable voice and / or sms

Telephone book: 10 telephone numbers with a maximum of 20 digits

Ambient Listening: Yes

Hands-free phone function: Yes

Remote programming: All parameters

Low credit alert: By SMS

SIM expiration programming: Automatic and manual

SIM number visibility programming: Yes

Memory: 100 events

GSM signal level reading: Yes

Battery level check: Yes

Scanning function: Search for the best GSM operator

Metal container: 180 X 115 X 52 mm (H X W X D)

Rated voltage: dimensions without antenna

Min / max consumption: 13.8V ± 10%

Operating temperature: 45mA / 350mA at 13.8Vdc

Allocable back-up battery (not supplied): +5 ~ + 40 ° C
